Body is made of a special anti-seize light alloy, aluminium tensioning head and it includes a sprocket.For chain:ISO 3/8 06B z21-1/2 08B z16-5/8 10B z17-3/4 12B z15-1" 16B z12. Simple. Newton300:650
Price:
from $59.93


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Drive chain tensioner | ETR3ACTE
Code
NEWTON
SPROCKET
Price

Stock

Delivery

Quantity
Download-cad

ETR3AC38STE

300-650
3\8"x7\32"(06B1) Z21 SIMPLE
$59.93

92

14 December

pdf-- step-- sat-- x_t-- dwg-- dxf

ETR3AC12STE

300-650
1\2"x5\16"(08B1) Z16 SIMPLE
$60.06

92

14 December

pdf-- step-- sat-- x_t-- dwg-- dxf

ETR3AC58STE

300-650
5\8"x3\8"(10B1) Z17 SIMPLE
$62.27

92

14 December

pdf-- step-- sat-- x_t-- dwg-- dxf

ETR3AC34STE

300-650
3\4"x7\16"(12B1) Z15 SIMPLE
$62.79

92

14 December

pdf-- step-- sat-- x_t-- dwg-- dxf

ETR3AC1STE

300-650
1"X17m\m(16B1) Z12 SIMPLE
$67.47

92

14 December

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

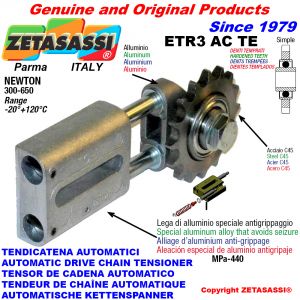

ETR3 AC TE with hardened idler sprocket model ACTE, automatic device linear spring-action chain drive tensioner consisting of a base in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa that ensures perfect glide on high tensile strength galvanized steel rods, to which a threaded aluminium head is fastened. The head is equipped with an idle chain tensioning pinion with double-shielded bearings, model AC.

CATALOGUE PAGE

Accessories

  1. 1
    Brackets for linear tensioners
    Price:
    from $16.77
    Our ABS brackets are a good support for our tensioners. They are available with screws to set up the tensioner in the right way.They are made of zinc-coated steel, their shape blocks twisting so the tensioner keeps the right position .
  2. 2
    Idler sprocket bracket
    Price:
    from $28.34
    They support simple and double chain sprockets and are available with the sprocket set up. They are economic, strong and easy to be set up so you can avoid other solutions
  3. 3
    Bracket hr with hardened idler sprocket
    Price:
    from $30.42
    They support simple and double chain sprockets and are available with the sprocket set up. They are economic, strong and easy to be set up so you can avoid other solutions .
  4. 4
    Sidler procket kit
    Price:
    from $10.79
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  5. 5
    Stainless steel idler sprockets
    Price:
    from $34.71
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  6. 6
    Linear tensioner preloading
    Price:
    from $9.88
    PRELOAD BRACKET FOR LINEAR TIGHTENERS. For all linear tensioners. Galvanized steel.
  7. 7
    Idler sprocket
    Price:
    from $5.59
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9
  8. 8
    Hardened teeth idler sprockets
    Price:
    from $7.67
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  9. 9
    Kit for idler sprocket
    Price:
    from $3.64
    KIT for sprockets AC-ACTE They include a galvanized steel screw and a machined spacer.
  10. 10
    Idler sprocket
    Price:
    from $8.19
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  11. 11
    Linear tensioner preloading block
    Price:
    $10.53
    Linear tensioner preloading block. (galvanized steel) For ali linear tensioners

Similar

  1. 1
    Adjustable cams az1
    Price:
    $25.48
    The adjustable cams are used to control the pivot rotation or particular rotary groups thanks to switches. That happens when it is necessary to control the rotation and have a signal.
  2. 2
    Adjustable cams b64
    Price:
    $11.44
    The adjustable cams are used to control the pivot rotation or particular rotary groups thanks to switches. That happens when it is necessary to control the rotation and have a signal.
  3. 3
    Drive chain tensioner
    Price:
    from $80.99
    The body is made of a special anti-seize light alloy and a zinc-coated tensioning head. They include a sprocket. For chain:ISO 1" 16B z12 - 1"1/4 20B z9, simple. Newton300:650
  4. 4
    Drive chain tensioner (ptfe bushes)
    Price:
    from $109.98
    The body is made of a special anti-seize light alloy and a zinc-coated tensioning head. They include a sprocket. For chain:ISO 1" 16B z12 - 1"1/4 20B z9, simple. Newton300:650
  5. 5
    Drive chain tensioner (ptfe bushes)
    Price:
    $112.71
    The body is made of a special anti-seize light alloy and a zinc-coated tensioning head. They include a hardened teeth sprocket. For chain:ISO 1" 16B z12, simple. Newton300:650
  6. 6
    Drive chain tensioner
    Price:
    $83.72
    The body is made of a special anti-seize light alloy and a zinc-coated tensioning head. They include a hardened teeth sprocket. For chain:ISO 1" 16B z12, simple. Newton300:650
  7. 7
    Directable rotary tensioner
    Price:
    from $18.20
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers . ORIENT with boring or threading ( boring or threading on demand).
  8. 8
    Directable rotary drive chain tensioner
    Price:
    from $27.30
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
  9. 9
    Directable rotary drive chain tensioner
    Price:
    from $28.21
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
  10. 10
    Directable rotary drive belt tensioner
    Price:
    from $33.28
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PU with idler roller ( on our catalogue you can find pulleys made of different materials and in different measures).
  11. 11
    Directable rotary drive belt tensioner
    Price:
    from $39.52
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PUG with a rim pulley and protections.
  12. 12
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  13. 13
    Directable rotary drive chain tensioner
    Price:
    from $31.98
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  14. 14
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .

Datasheet

AUTOMATIC CHAIN AND BELT TENSIONERS

LINEAR - AXIAL

Our TO, TA and ET series of linear tensioners were designed in 1979 and patented in 1981. We were the first in the world to manufacture linear chain tensioners which used bolts, third in the world and first in Italy to manufacture and design automatic tensioners in general.

Initially designed with an aluminium body equipped with bushes for the bolts, they were then modified using die cast technology. In fact, there is no longer the need to use sliding bushes. The bodies are made of a special mixture of alloys, not only light alloys.

This alloy is heavier thus giving a more robust structure which can better withstand temperatures, creating as little displacement as possible from its tolerances. They are also anti-seize so that internal bolts can slide perfectly; in fact, the clearance in the bolts is reduced to 0,05:0,13 m/m and all our castings are machined using our own CNCs.

These tensioners are also available in a KU version with self-lubricating sliding bushes; the bodies are made of light alloy and not purely aluminium. We have learnt from experience that aluminium has some displacement due to temperature changes which can, in time, lead to problems with the tolerances of the bushes themselves. We have assured the mechanical hold of the bushes by using this mixture together with specific manufacturing techniques using our CNC machinery. The clearance of the bolts falls between 0,02:0,05 m/m.

Why and when to use these bushes?

They are used very rarely; usually in belt tensioners where the belts turn at high speed and there is the need to dampen frequencies on return or long sections, for example, printing machines, etc.

Or when there is the need to mount an automatic tensioner in a position which is difficult to access by the operator.

Note that in all cases of sliding bolts, a minimum amount of grease needs to be applied, either before mounting or after pro-loading, just as the bolts need to be greased over the life of the machine during its normal maintenance.

In most cases, it is better to use the model without the bushes which we recommend.  In fact, where there is a need to quickly retrieve the pre-load point (for example, the start of a transmission without a deceleration or acceleration ramp) where the automatic tensioner must be able to quickly retrieve the starting point, and sliding bushes, which decrease clearance on the bolts, are not always the right choice…

Or, it may not be opportune to use them where there is too much moisture or the formation of condensation; in this case we suggest you look at our NT model.

Our NT series automatic chain tensioner was designed in around 2000 and patented in 2001.

It was designed to meet the requirement for a completely closed automatic chain tensioner, to prevent infiltrations (dust from cement, ceramics, dust, sugar, flour, etc.).

Given the experience gained from our earlier models and to maintain sustainable production costs, we designed the product in aluminium and the self-lubricating sliding bushes in plastic, thus allowing the aluminium of the body to displace depending on the temperature but not to affect the sliding action of the bolts. In fact, the bushes are blocked for interference and also have a specifically-designed locking pin so as not to lose tolerances (we know that plastic materials move through humidity present in the air).  The clearance on the pins is between 0,06:0,16 m/m.
