Arm belt tensioner

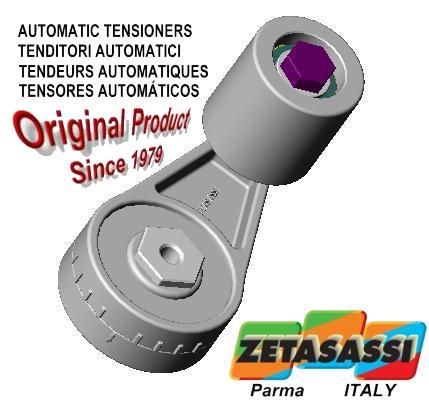

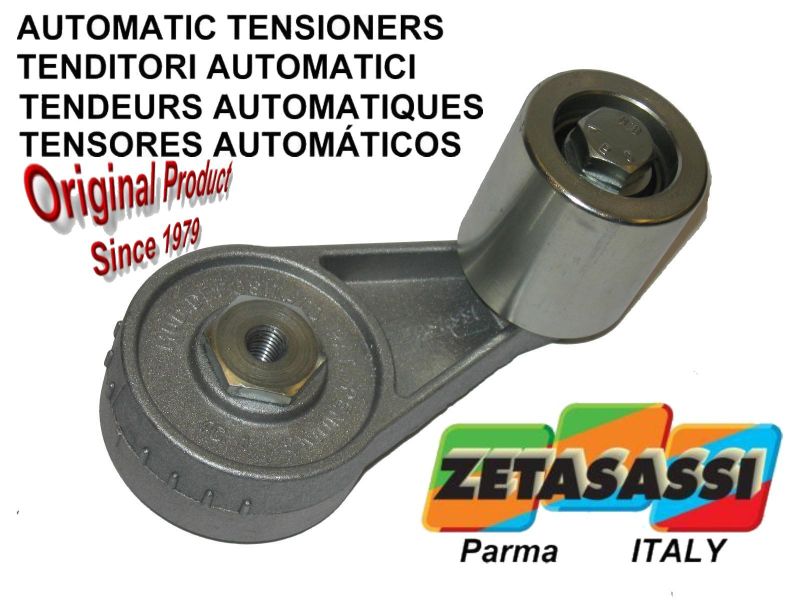

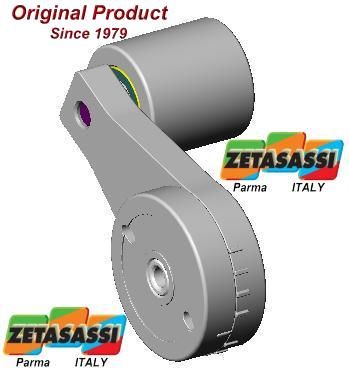

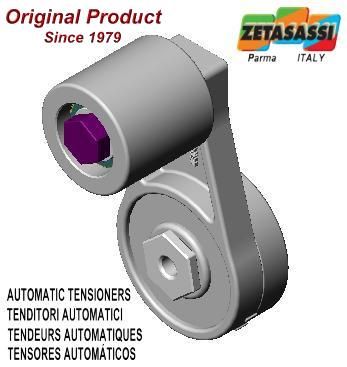

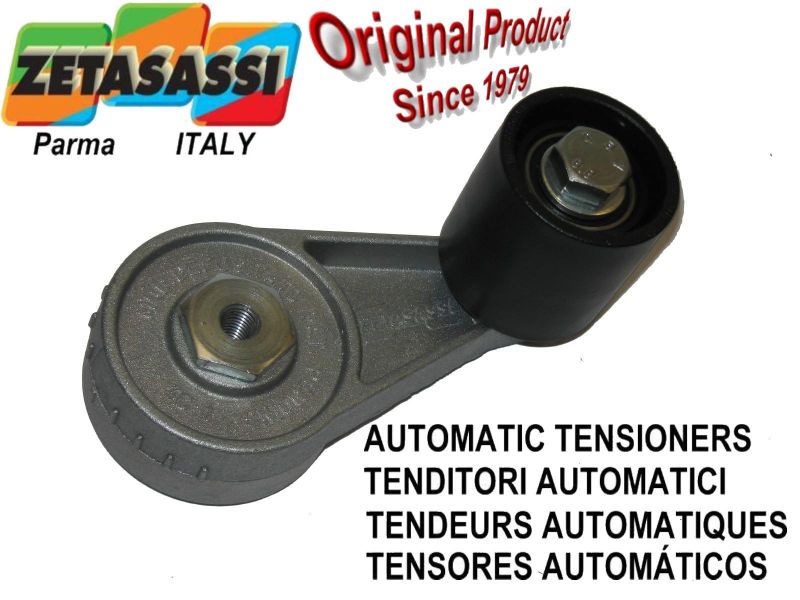

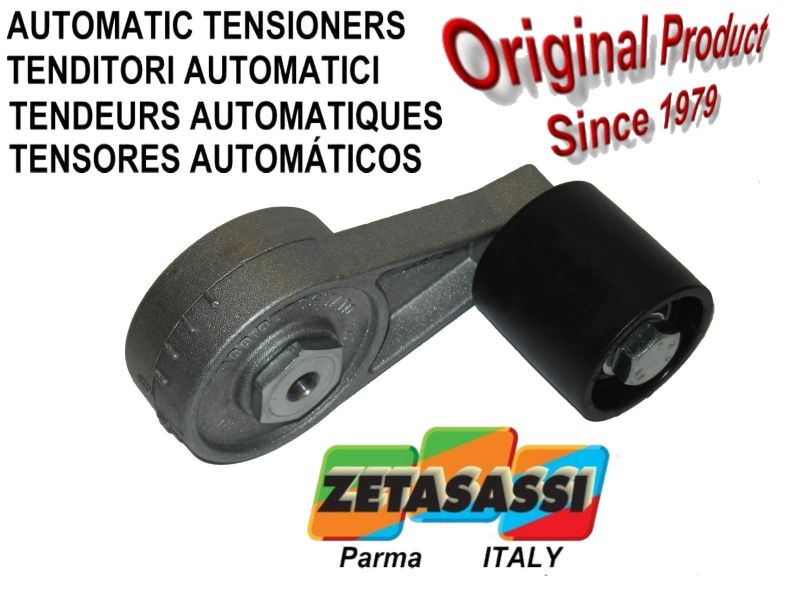

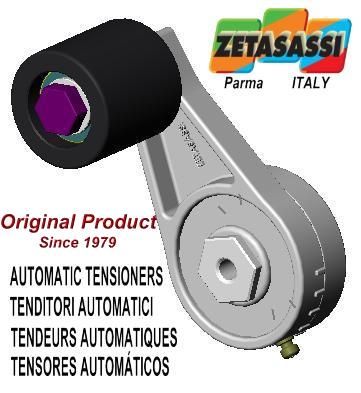

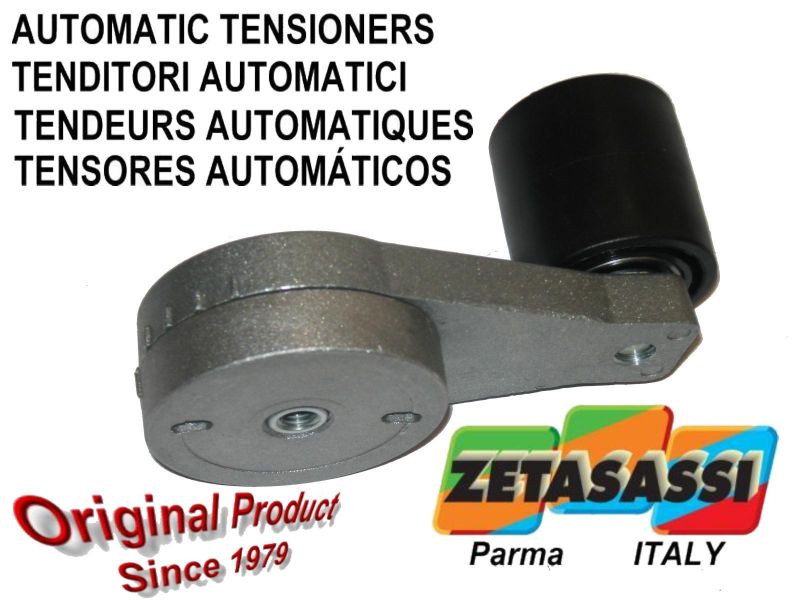

Body and the lever/arm made of a special anti-seize light alloy.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 60° in both sense of rotation.
Price:
from $31.72


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®

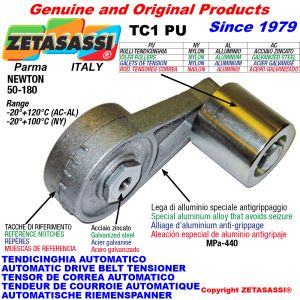

Arm belt tensioner | TC1PU
Code
PULLEY
MATERIAL
GREASER
Price

Stock

Delivery

Quantity
Download-cad

TC1PU3035NY

Ø30 x L35 (m\m)
NYLON
NO
$31.72

623

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU3035NYING

Ø30 x L35 (m\m)
NYLON
YES
$38.22

623

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU3035AC

Ø30 x L35 (m\m)
ZINC-COATED STEEL
NO
$34.45

623

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU3035ACING

Ø30 x L35 (m\m)
ZINC-COATED STEEL
YES
$40.95

623

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU3035AL

Ø30 x L35 (m\m)
ALUMINUM
NO
$34.06

623

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU3035ALING

Ø30 x L35 (m\m)
ALUMINUM
YES
$40.56

623

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU4045NY

Ø40 x L45 (m\m)
NYLON
NO
$34.45

689

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU4045NYING

Ø40 x L45 (m\m)
NYLON
YES
$41.08

1,081

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU5050NY

Ø50 x L50 (m\m)
NYLON
NO
$34.45

653

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU5050NYING

Ø50 x L50 (m\m)
NYLON
YES
$41.08

653

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU5050AC

Ø50 x L50 (m\m)
ZINC-COATED STEEL
NO
$42.38

581

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU5050ACING

Ø50 x L50 (m\m)
ZINC-COATED STEEL
YES
$49.14

581

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU5050AL

Ø50 x L50 (m\m)
ALUMINUM
NO
$38.61

1,120

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU5050ALING

Ø50 x L50 (m\m)
ALUMINUM
YES
$45.37

1,156

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU6060NY

Ø60 x L60 (m\m)
NYLON
NO
$38.74

481

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU6060NYING

Ø60 x L60 (m\m)
NYLON
YES
$45.50

481

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU6060AC

Ø60 x L60 (m\m)
ZINC-COATED STEEL
NO
$44.98

561

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU6060ACING

Ø60 x L60 (m\m)
ZINC-COATED STEEL
YES
$51.74

561

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU6060AL

Ø60 x L60 (m\m)
ALUMINUM
NO
$44.46

489

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU6060ALING

Ø60 x L60 (m\m)
ALUMINUM
YES
$51.09

489

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU8080NY

Ø80 x L80 (m\m)
NYLON
NO
$52.65

270

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU8080NYING

Ø80 x L80 (m\m)
NYLON
YES
$59.28

270

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU8080AC

Ø80 x L80 (m\m)
ZINC-COATED STEEL
NO
$59.54

64

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU8080ACING

Ø80 x L80 (m\m)
ZINC-COATED STEEL
YES
$66.30

64

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU8080AL

Ø80 x L80 (m\m)
ALUMINUM
NO
$59.54

159

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1PU8080ALING

Ø80 x L80 (m\m)
ALUMINUM
YES
$66.30

159

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

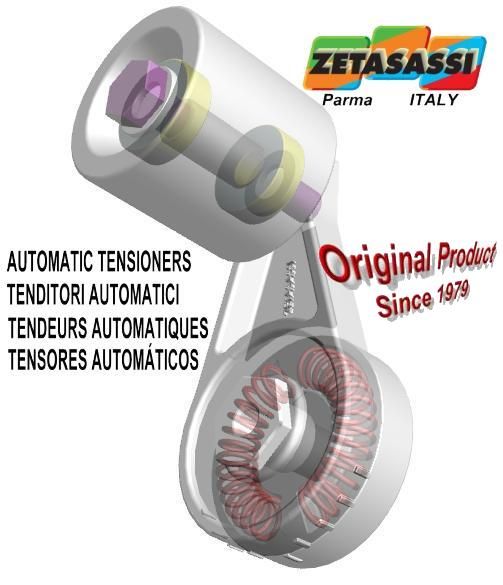

TC1PU with idler roller, automatic device rotating spring-action belt arm tensioners consisting of a base and lever in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa.Tensioning angle 60° in both directions of rotation.Equipped with idle belt tensioner roller with double-shielded bearings.

CATALOGUE PAGE

Accessories

  1. 1
    Idler rollers steel-aluminium-nylon
    Price:
    from $11.44
    Our IDLER ROLLERS PU can be made of Aluminium, Zinc Coated Steel and plastic material type PA6. Ø30 L 35 - Ø40 L45 – Ø40 L 50 – Ø50 L 50 - Ø50 L65 – Ø60 L60 – Ø60 L90 – Ø80 L80- Ø80 L90.
  2. 2
    Brackets for tc & tr rotary tensioners
    Price:
    from $8.71
    Supporting brackets in galvanized steel for rotating spring-action tensioners model TC and TR.
  3. 3
    Tc & tr rotary tensioner preloading
    Price:
    from $13.26
    Preloads and antirotation safety systems in galvanized steel for rotating spring-actions tensioners model TC & TR, equipped with blocking dowels.To be used when installing the tensioners on imperfect or irregular surfaces.

Similar

  1. 1
    Directable rotary drive belt tensioner
    Price:
    from $33.28
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PU with idler roller ( on our catalogue you can find pulleys made of different materials and in different measures).
  2. 2
    Directable rotary drive belt tensioner
    Price:
    from $39.52
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PUG with a rim pulley and protections.
  3. 3
    Belt tensioner device
    Price:
    from $30.94
    Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
  4. 4
    Belt tensioner device
    Price:
    from $34.71
    Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
  5. 5
    Belt tensioner device
    Price:
    from $36.92
    Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
  6. 6
    Belt tensioner device
    Price:
    from $52.39
    Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
  7. 7
    Belt tensioner device
    Price:
    from $37.18
    Light alloy body and lever and a belt tensioning pulley.Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the pulley with double shielded bearings bearings
  8. 8
    Belt tensioner device
    Price:
    from $40.95
    Light alloy body and lever and a belt tensioning pulley.Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the pulley with double shielded bearings bearings
  9. 9
    Belt tensioner device
    Price:
    from $44.98
    Light alloy body and lever and a belt tensioning pulley.Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the pulley with double shielded bearings bearings
  10. 10
    Belt tensioner device
    Price:
    from $56.81
    Light alloy body and lever and a belt tensioning pulley.Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the pulley with double shielded bearings bearings
  11. 11
    Arm belt tensioner
    Price:
    from $32.37
    Body and the lever made of a special anti-seize plastic material POM.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 75° in both sense of rotation.
  12. 12
    Arm belt tensioner
    Price:
    from $38.61
    Body and the lever made of a special anti-seize plastic material POM.They include a rim pulley with double shielded bearings bearings. Useful tensioning angle 75° in both sense of rotation.
  13. 13
    Arm belt tensioner
    Price:
    from $41.73
    Body and the lever/arm made of a special anti-seize light alloy.They include a rim pulley with double shielded bearings bearings. Useful tensioning angle 60° in both sense of rotation.
  14. 14
    Arm belt tensioner
    Price:
    from $48.75
    Body and the lever/arm made of a special anti-seize light alloy.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 45° in both sense of rotation.
  15. 15
    Arm belt tensioner
    Price:
    from $55.51
    Body and the lever/arm made of a special anti-seize light alloy.They include a rim pulley with double shielded bearings bearings. Useful tensioning angle 45° in both sense of rotation.
  16. 16
    Rotary arm belt tensioner
    Price:
    from $48.36
    The type TR1PUG have a light alloy body and galvanized steel lever and a pulley. TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.
  17. 17
    Rotary arm belt tensioner
    Price:
    from $42.25
    The type TR1PU have a light alloy body and galvanized steel lever/arm and a idler rollers. TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.
  18. 18
    Rotary arm belt tensioner
    Price:
    from $59.93
    The type TR2PUG have a light alloy body and galvanized steel lever and a pulley. TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.

Datasheet

AUTOMATIC CHAIN AND BELT TENSIONERS

ROTARY TENSIONERS

Our TC series belt and chain tensioners and rotary tensioners were designed in 1979 and patented in 1981. We were the first in the world to manufacture rotating chain tensioners using coil springs, third in the world and first in Italy to manufacture and design automatic tensioners in general.

Starting with a central, hexagonal 24 m/m central bush, using technological advances to resolve problems caused by temperature, dirt, humidity and condensation which interfered with the good rotation of the lever, we starting using an anti-seize mixture composed of alloys, not only light alloy, which allowed us to eliminate the bush and increase the dimensions of the central bolt. This also increases the rotation degrees of the lever and gives rise to a product of excellence in its field, particularly through the very high quality control we achieve by machining all details using our own CNCs.

Please note that the TC model rotary tensioners are pre-greased, but in some cases, where there is a need due to dust, concrete, dust, flour, sugar, moisture, humidity, high temperature, etc. we have created a model equipped with a greaser so that the tensioners can be greased during normal machine maintenance.

The heart of a machine is its transmission; to protect it, we offer the best quality Made in Italy products.

If you would like further information about our products, please contact us and we will be pleased to advise you on the right product to suit your applications.
