Brackets for linear tensioners

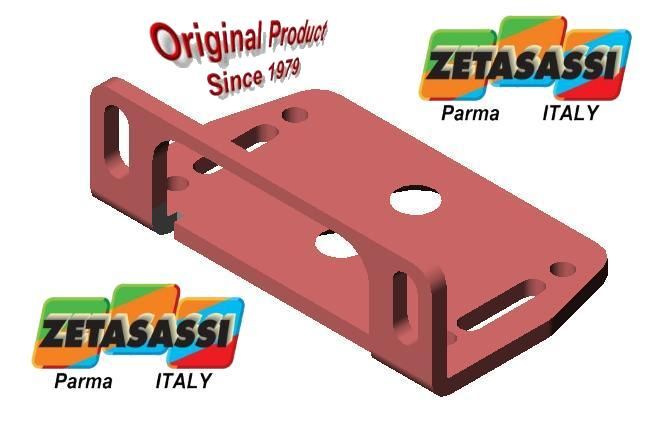

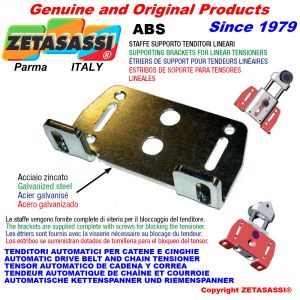

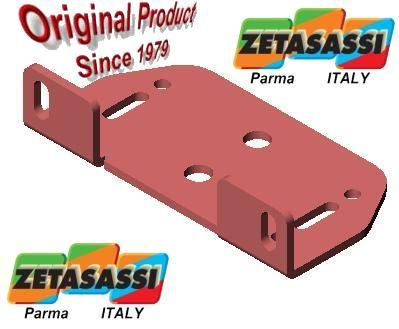

Our ABS brackets are a good support for our tensioners. They are available with screws to set up the tensioner in the right way.They are made of zinc-coated steel, their shape blocks twisting so the tensioner keeps the right position .
Price:
from $16.77


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Brackets for linear tensioners | ABS
Code
TYPE
Price

Stock

Delivery

Quantity
Download-cad

ABS1

1
$16.77

168

14 December

pdf-- step-- sat-- x_t-- dwg-- dxf

ABS2

2
$24.18

88

14 December

pdf-- step-- sat-- x_t-- dwg-- dxf

ABS3

3
$33.15

4

14 December

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

Our ABS brackets  are a good support for our tensioners. They are available with screws to set up the tensioner in the right way.

These new brackets can be used in various applications, they have a easy set up and they are economic and  sturdy. You can save money compared to other solutions.

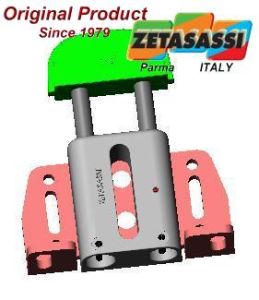

They are made of zinc-coated steel, their shape blocks twisting so the tensioner keeps the right position . There are many ways to set up our tensioners.

CATALOGUE PAGE

Similar

  1. 1
    Brackets for rh rotary tensioners
    Price:
    from $8.58
    Supporting brackets in galvanized steel for rotating tensioners in rubber model RH.
  2. 2
    Brackets for tc & tr rotary tensioners
    Price:
    from $8.71
    Supporting brackets in galvanized steel for rotating spring-action tensioners model TC and TR.
  3. 3
    Linear tensioner preloading
    Price:
    from $9.88
    PRELOAD BRACKET FOR LINEAR TIGHTENERS. For all linear tensioners. Galvanized steel.
  4. 4
    Rh rotary tensioner preloading
    Price:
    from $6.24
    Preloads and antirotation safety systems in galvanized steel for rotating tensioners in rubber model RH. To be used when installing the tensioners on imperfect or irregular surfaces.
  5. 5
    Tc & tr rotary tensioner preloading
    Price:
    from $13.26
    Preloads and antirotation safety systems in galvanized steel for rotating spring-actions tensioners model TC & TR, equipped with blocking dowels.To be used when installing the tensioners on imperfect or irregular surfaces.
  6. 6
    Linear tensioner preloading block
    Price:
    $10.53
    Linear tensioner preloading block. (galvanized steel) For ali linear tensioners

Datasheet

COD

 POSSIBLE APPLICATION

ABS1

TO-05 / TO1

TA-05 / TA1

NT1

NTA1

ET1

ETR1

ETH1

ETHG1

ETHR1

ABS2

TO2

TA2

NT2

NTA2

ET2

ETR2

ETH2

ETHG2

ETHR2

ABS3

TO3

TA3



ET3

ETR3

ETH3

ETHG3

ETHR3

LINEAR / AXIAL AUTOMATIC SPRING-ACTION TENSIONERS

The linear tensioners are automatic devices that serve to maintain the correct tension of the transmission chain or belt, thereby increasing their durability.

They automatically recover any slack in the chain or belt that may develop with use, preventing the appearance of vibrations, noise and breakage due to slack.

These automatic tensioners do not require any kind of upkeep and make it possible to save time on maintenance and management of the machinery on which they are installed.

The TO—ET – TA models consist of a base in special, very sturdy, antiseize aluminum alloy with tensile strength of  440MPa that ensures perfect glide on high tensile strength galvanized steel rods, to which the chain tensioning head or shoe is fastened.They are fitted on the inside with elastic elements in steel with a very high yield point and initial preload, which makes it possible to obtain a more constant pressure excursion.In addition, the mechanical specifications of the material are such as to prevent wear on the internal elastic elements caused by movement, and to have a product of absolute excellence in this field.

The KU models are equipped with PTFE type glide bushings for the movement of the rods.

The NT models have an aluminum base with tensile strength of 240MPa, completely enclosed to prevent infiltrations by external agents. The galvanized steel rods glide thanks to self-lubricating plastic bushings.

Models TO – TA – NT have a tensioning shoe or head in wear-resistant plastic material with low friction coefficient (polyethylene 1,000,000 UHMW with dynamic dry steel friction coefficient of 0.06) and can withstand a temperature of 80°C. With different profiles, the polyethylene shoes have a wear coefficient substantially equal to zero a these temperatures and are available for ISO or ASA, simple, double and triple chain types.

The ET models are particularly indicated when working in the presence of high temperatures where rubber and plastic materials would be subject to wear. They can work at temperatures as high as 200°C.

Brackets in galvanized steel or heads in light diecast alloy are mounted on the gliding rods, where it is also possible to install pulleys, chain tensioning pinions, etc.

The ET models can also be supplied in the TIRO version.

The TO05 models are the version in plastic material and have the same mechanical parameters as the previous models.They can withstand working temperatures up to 65°C.

It is possible to produce, for all models, a version with glide rods and assembly parts in stainless style type AISI 304/316, springs in AISI 302.

The SS version completely in stainless steel has the base machined from solid AISI 304, PTFE bushings for rod glide and all mechanical parts and fasteners in AISI 304/316, spring in AISI 302.
