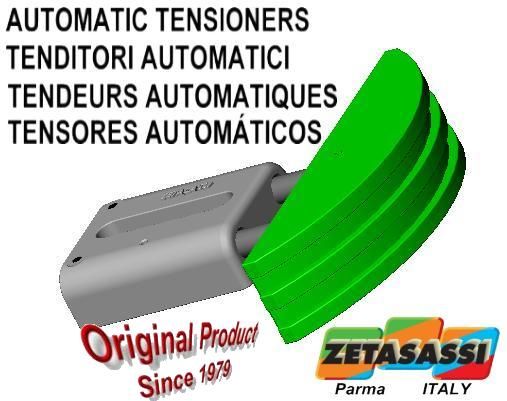

Linear drive chain tensioner

Has a special anti-seize light alloy body and PE1000 UHMW tensioning head. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double and triple. Newton130:250
Price:
from $32.37


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Linear drive chain tensioner | TA1T
Code
NEWTON
CHAIN
Price

Stock

Delivery

Quantity
Download-cad

TA1T38S

130-250
3\8"x7\32"(06B1) SIMPLE
$34.97

99

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1T38D

130-250
3\8"x7\32"(06B2) DOUBLE
$35.88

105

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1T38T

130-250
3\8"x7\32"(06B3) TRIPLE
$59.93

41

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1T12S

130-250
1\2"x5\16"(08B1) SIMPLE
$32.37

269

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1T12D

130-250
1\2"x5\16"(08B2) DOUBLE
$35.88

171

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1T12T

130-250
1\2"x5\16"(08B3) TRIPLE
$60.58

42

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1TASA35S

130-250
ASA35(06C1) SIMPLE
$41.34

2,887

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1TASA35D

130-250
ASA35(06C2) DOUBLE
$42.25

2,887

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1TASA35T

130-250
ASA35(06C3) TRIPLE
$62.66

2,601

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1TASA40S

130-250
ASA40(08A1) SIMPLE
$41.34

2,887

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1TASA40D

130-250
ASA40(08A2) DOUBLE
$42.25

2,967

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TA1TASA40T

130-250
ASA40(08A3) TRIPLE
$64.48

716

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

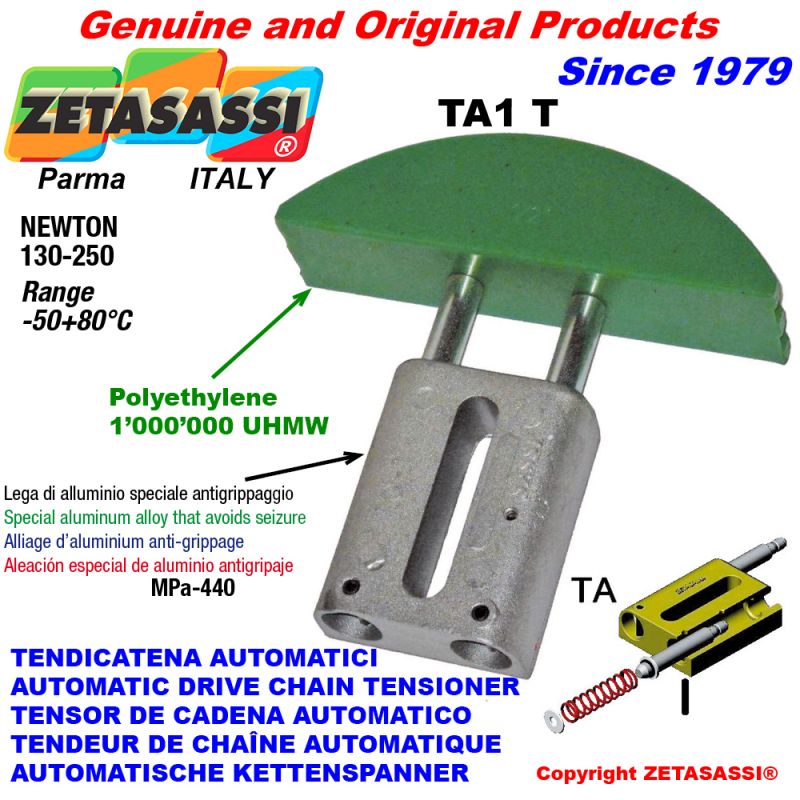

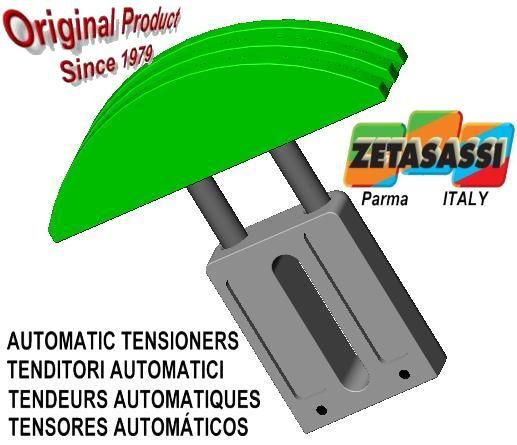

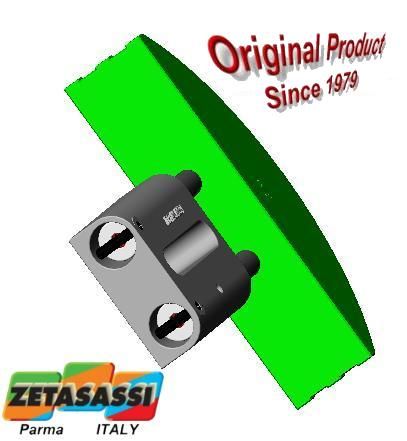

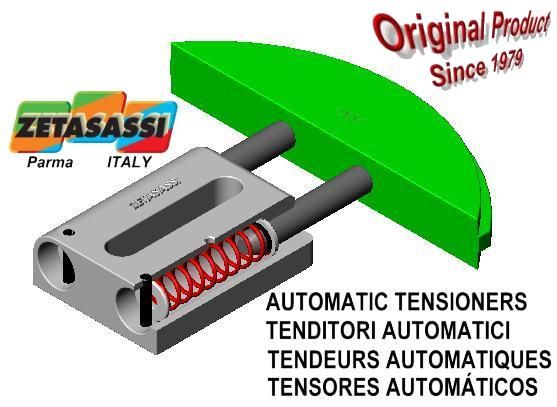

TA1 round arch head, automatic device linear spring-action drive chain tensioners consisting of a base in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa that ensures perfect glide on high tensile strength galvanized steel rods, to which the chain tensioning head or shoe in polyethylene 1,000,000 UHMW is fastened.

Newton 130:250

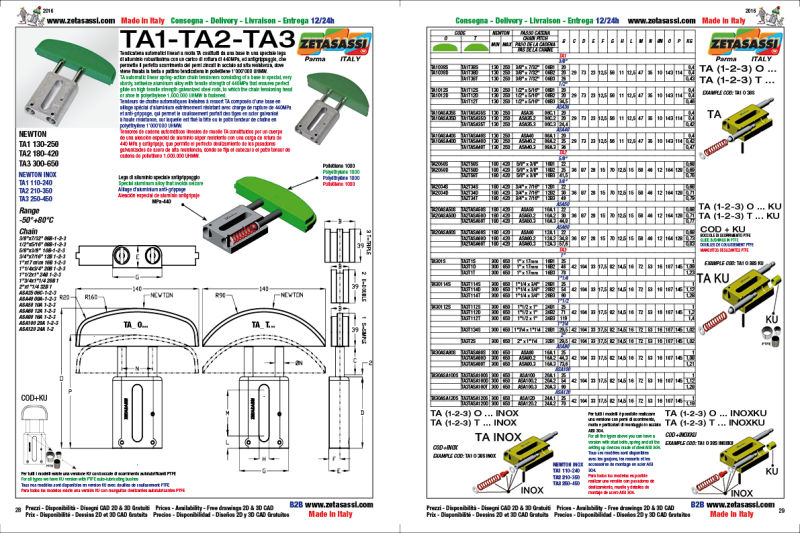

CATALOGUE PAGE

Accessories

  1. 1
    Brackets for linear tensioners
    Price:
    from $16.77
    Our ABS brackets are a good support for our tensioners. They are available with screws to set up the tensioner in the right way.They are made of zinc-coated steel, their shape blocks twisting so the tensioner keeps the right position .
  2. 2
    Chain slider
    Price:
    from $12.61
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  3. 3
    Linear tensioner preloading
    Price:
    from $9.88
    PRELOAD BRACKET FOR LINEAR TIGHTENERS. For all linear tensioners. Galvanized steel.
  4. 4
    Linear tensioner preloading block
    Price:
    $10.53
    Linear tensioner preloading block. (galvanized steel) For ali linear tensioners

Similar

  1. 1
    Automatic linear drive chain tensioner
    Price:
    from $30.16
    aluminium body and a tensioning PE 1000 UHMW head.They have bushes that allow the perfect sliding. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double. Newton130:250
  2. 2
    Inox automatic linear drive chain tensioner
    Price:
    from $51.35
    aluminium body and a tensioning PE 1000 UHMW head.They have bushes that allow the perfect sliding. For chain:ISO3/8 06B-1/2 08B-5/8 10B-ASA35 06C-ASA40 08A simple, double. Newton130:250.Stainless steel version
  3. 3
    Automatic linear drive chain tensioner
    Price:
    from $31.72
    aluminium body and a tensioning PE 1000 UHMW head.They have bushes that allow the perfect sliding. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double,triple. Newton130:250
  4. 4
    Inox automatic linear drive chain tensioner
    Price:
    from $52.78
    aluminium body and a tensioning PE 1000 UHMW head.They have bushes that allow the perfect sliding. For chain:ISO3/8 06B-1/2 08B-5/8 10B-ASA35 06C-ASA40 08A simple, double, triple. Newton130:250.Stainless steel version
  5. 5
    Linear drive chain tensioner
    Price:
    from $33.80
    The body made of plastic and the tensioning head in PE1000 UHMW. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double. Newton130:250
  6. 6
    Inox linear drive chain tensioner
    Price:
    from $53.82
    Plastic material body and PE1000 UHMW tensioning head. Version with pivots, springs and set up elements made of stainless steel. For chain:ISO3/8 06B-ISO1/2 08B-ISO5/8 10B-ASA35 06C-ASA40 08A simple, double. Newton110:240
  7. 7
    Linear drive chain tensioner
    Price:
    from $35.49
    Body made of plastic and the tensioning head in PE1000 UHMW. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double and triple. Newton130:250
  8. 8
    Inox linear drive chain tensioner
    Price:
    from $55.51
    Plastic material body and PE1000 UHMW tensioning head. Version with pivots, springs and set up elements made of stainless steel. For chain:ISO3/8 06B-ISO1/2 08B-ISO5/8 10B-ASA35 06C-ASA40 08A simple, double,triple. Newton110:240
  9. 9
    Linear drive chain tensioner
    Price:
    from $30.94
    Has a special anti-seize light alloy body and PE1000 UHMW tensioning head. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double. Newton130:250
  10. 10
    Inox linear drive chain tensioner
    Price:
    from $59.67
    Has a special anti-seize light alloy body and PE1000 UHMW tensioning head. Version with pivots, springs and set up elements made of stainless steel. For chain:ISO3/8 06B-ISO1/2 08B-ISO5/8 10B-ASA35 06C-ASA40 08A simple, double. Newton110:240
  11. 11
    Inox linear drive chain tensioner (ptfe bushes)
    Price:
    from $77.74
    Has a special anti-seize light alloy body and PE1000 UHMW tensioning head. Version with pivots, springs and set up elements made of stainless steel. For chain:ISO3/8 06B-ISO1/2 08B-ISO5/8 10B-ASA35 06C-ASA40 08A simple, double. Newton110:240
  12. 12
    Linear drive chain tensioner (ptfe bushes)
    Price:
    from $53.56
    Has a special anti-seize light alloy body and PE1000 UHMW tensioning head. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double. Newton130:250
  13. 13
    Inox linear drive chain tensioner
    Price:
    from $61.36
    Has a special anti-seize light alloy body and PE1000 UHMW tensioning head. Version with pivots, springs and set up elements made of stainless steel. For chain:ISO3/8 06B-ISO1/2 08B-ISO5/8 10B-ASA35 06C-ASA40 08A simple, double,triple. Newton110:240
  14. 14
    Inox linear drive chain tensioner (ptfe bushes)
    Price:
    from $79.30
    Has a special anti-seize light alloy body and PE1000 UHMW tensioning head. Version with pivots, springs and set up elements made of stainless steel (PTFE bushes). For chain:ISO3/8 06B-ISO1/2 08B-ISO5/8 10B-ASA35 06C-ASA40 08A simple, double. Newton110:240
  15. 15
    Linear drive chain tensioner (ptfe bushes)
    Price:
    from $55.12
    Has a special anti-seize light alloy body and PE1000 UHMW tensioning head. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double and triple. Newton130:250

Datasheet

AUTOMATIC CHAIN AND BELT TENSIONERS

LINEAR - AXIAL

Our TO, TA and ET series of linear tensioners were designed in 1979 and patented in 1981. We were the first in the world to manufacture linear chain tensioners which used bolts, third in the world and first in Italy to manufacture and design automatic tensioners in general.

Initially designed with an aluminium body equipped with bushes for the bolts, they were then modified using die cast technology. In fact, there is no longer the need to use sliding bushes. The bodies are made of a special mixture of alloys, not only light alloys.

This alloy is heavier thus giving a more robust structure which can better withstand temperatures, creating as little displacement as possible from its tolerances. They are also anti-seize so that internal bolts can slide perfectly; in fact, the clearance in the bolts is reduced to 0,05:0,13 m/m and all our castings are machined using our own CNCs.

These tensioners are also available in a KU version with self-lubricating sliding bushes; the bodies are made of light alloy and not purely aluminium. We have learnt from experience that aluminium has some displacement due to temperature changes which can, in time, lead to problems with the tolerances of the bushes themselves. We have assured the mechanical hold of the bushes by using this mixture together with specific manufacturing techniques using our CNC machinery. The clearance of the bolts falls between 0,02:0,05 m/m.

Why and when to use these bushes?

They are used very rarely; usually in belt tensioners where the belts turn at high speed and there is the need to dampen frequencies on return or long sections, for example, printing machines, etc.

Or when there is the need to mount an automatic tensioner in a position which is difficult to access by the operator.

Note that in all cases of sliding bolts, a minimum amount of grease needs to be applied, either before mounting or after pro-loading, just as the bolts need to be greased over the life of the machine during its normal maintenance.

In most cases, it is better to use the model without the bushes which we recommend.  In fact, where there is a need to quickly retrieve the pre-load point (for example, the start of a transmission without a deceleration or acceleration ramp) where the automatic tensioner must be able to quickly retrieve the starting point, and sliding bushes, which decrease clearance on the bolts, are not always the right choice…

Or, it may not be opportune to use them where there is too much moisture or the formation of condensation; in this case we suggest you look at our NT model.

Our NT series automatic chain tensioner was designed in around 2000 and patented in 2001.

It was designed to meet the requirement for a completely closed automatic chain tensioner, to prevent infiltrations (dust from cement, ceramics, dust, sugar, flour, etc.).

Given the experience gained from our earlier models and to maintain sustainable production costs, we designed the product in aluminium and the self-lubricating sliding bushes in plastic, thus allowing the aluminium of the body to displace depending on the temperature but not to affect the sliding action of the bolts. In fact, the bushes are blocked for interference and also have a specifically-designed locking pin so as not to lose tolerances (we know that plastic materials move through humidity present in the air).  The clearance on the pins is between 0,06:0,16 m/m.

The heart of a machine is its transmission; to protect it, we offer the best quality Made in Italy products.

If you would like further information about our products, please contact us and we will be pleased to advise you on the right product to suit your applications.
