Inox drive chain tensioner

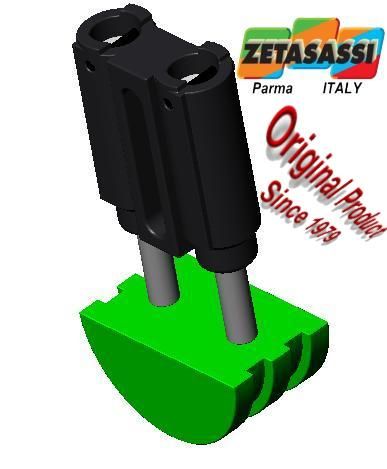

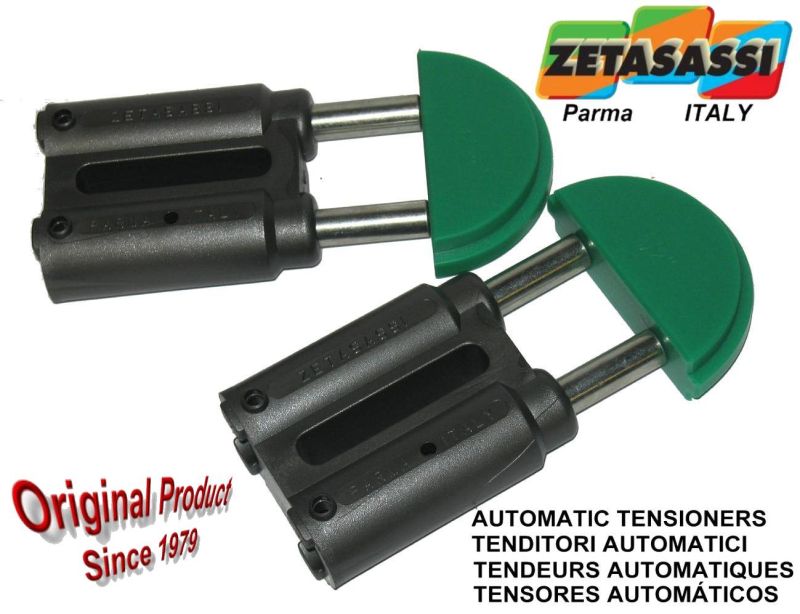

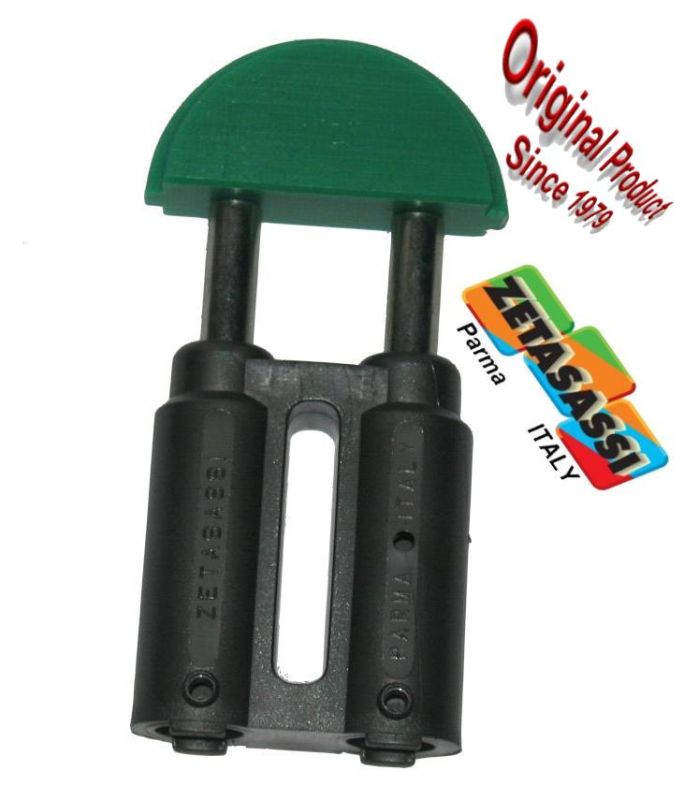

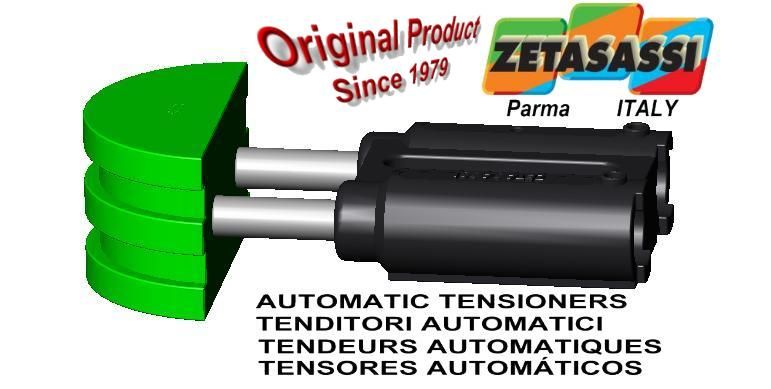

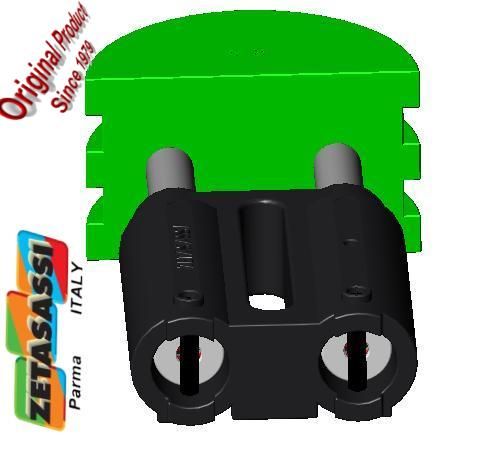

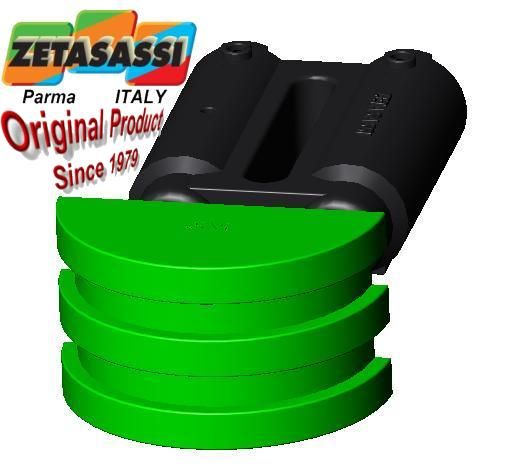

Plastic material body and PE1000 UHMW tensioning head. Version with pivots, springs and set up elements made of stainless steel. For chain:ISO3/8 06B-ISO1/2 08B-ISO5/8 10B-ASA35 06C-ASA40 08A simple, double,triple. Newton110:240
Price:
from $44.59


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Inox drive chain tensioner | TO05DP1TINOX
Code
NEWTON
CHAIN
Price

Stock

Delivery

Quantity
Download-cad

TO05DP1TUINOX

110-240
8x3 3/8" 1/2" SIMPLE
$45.89

341

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T38SINOX

110-240
3\8"x7\32"(06B1) SIMPLE
$44.59

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T38DINOX

110-240
3\8"x7\32"(06B2) DOUBLE
$44.59

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T38TINOX

110-240
3\8"x7\32"(06B3) TRIPLE
$53.56

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T12SINOX

110-240
1\2"x5\16"(08B1) SIMPLE
$44.59

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T12DINOX

110-240
1\2"x5\16"(08B2) DOUBLE
$44.59

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T12TINOX

110-240
1\2"x5\16"(08B3) TRIPLE
$53.56

14

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T58SINOX

110-240
5\8"x3\8"(10B1) SIMPLE
$44.59

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T58DINOX

110-240
5\8"x3\8"(10B2) DOUBLE
$46.54

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1T58TINOX

110-240
5\8"x3\8"(10B3) TRIPLE
$57.33

68

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1TASA35SINOX

110-240
ASA35(06C1) SIMPLE
$46.28

228

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1TASA35DINOX

110-240
ASA35(06C2) DOUBLE
$46.28

150

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1TASA35TINOX

110-240
ASA35(06C3) TRIPLE
$56.42

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1TASA40SINOX

110-240
ASA40(08A1) SIMPLE
$46.93

293

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1TASA40DINOX

110-240
ASA40(08A2) DOUBLE
$49.27

150

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TO05DP1TASA40TINOX

110-240
ASA40(08A3) TRIPLE
$60.19

754

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

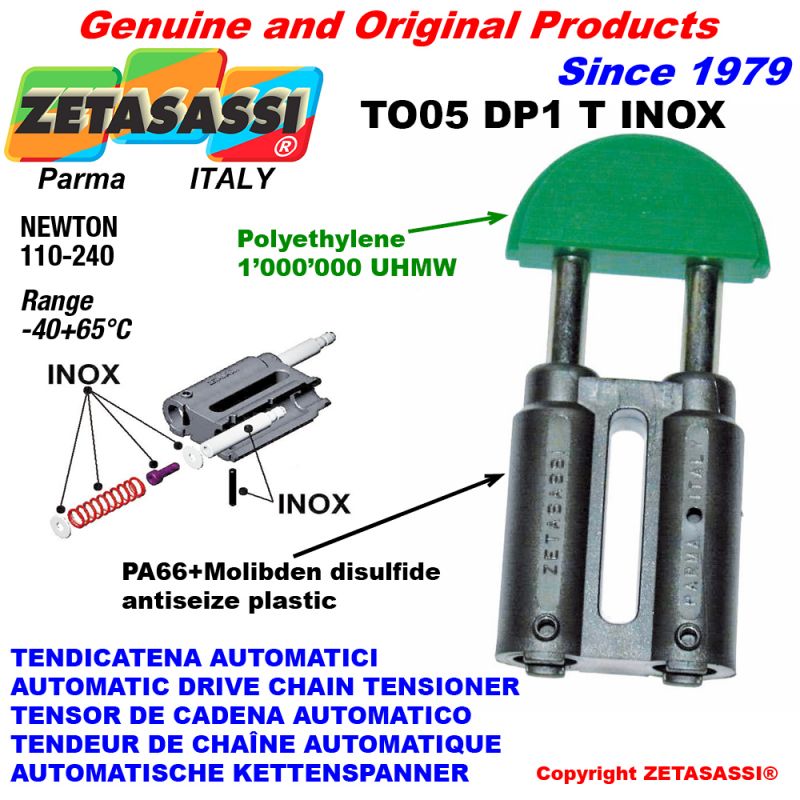

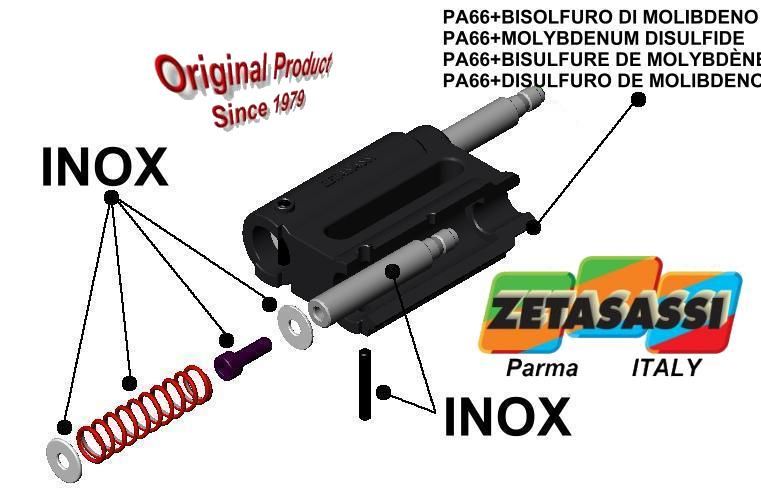

TO05DP1 automatic device linear spring-action drive chain tensioners consisting of a base in PA66+Molibden disulfide antiseize plastic that ensures perfect glide on high tensile strength stainless steel rods, to which the chain tensioning head or shoe in polyethylene 1,000,000 UHMW is fastened.

 CATALOGUE PAGE

Accessories

  1. 1
    Brackets for linear tensioners
    Price:
    from $16.77
    Our ABS brackets are a good support for our tensioners. They are available with screws to set up the tensioner in the right way.They are made of zinc-coated steel, their shape blocks twisting so the tensioner keeps the right position .
  2. 2
    Chain slider
    Price:
    from $6.37
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  3. 3
    Linear tensioner preloading
    Price:
    from $9.88
    PRELOAD BRACKET FOR LINEAR TIGHTENERS. For all linear tensioners. Galvanized steel.
  4. 4
    Linear tensioner preloading block
    Price:
    $10.53
    Linear tensioner preloading block. (galvanized steel) For ali linear tensioners

Similar

  1. 1
    Drive chain tensioner
    Price:
    from $18.20
    Type TO 05 are in plastic.This type was born for 3/8”x7/32” simple chain. It is possible to get various type of tensioning forces. Newton40:85-95:190-130:250
  2. 2
    Drive chain tensioner
    Price:
    from $20.93
    The body made of plastic and the tensioning head in PE1000 UHMW. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double. Newton40:85-95:190-130:250
  3. 3
    Inox drive chain tensioner
    Price:
    from $43.68
    Plastic material body and PE1000 UHMW tensioning head. Version with pivots, springs and set up elements made of stainless steel. For chain:ISO3/8 06B-ISO1/2 08B-ISO5/8 10B-ASA35 06C-ASA40 08A simple, double. Newton110:240
  4. 4
    Drive chain tensioner
    Price:
    from $21.84
    Body made of plastic and the tensioning head in PE1000 UHMW. For chain: ISO 3/8 06B - ISO 1/2 08B - ISO 5/8 10B - ASA35 06C - ASA40 08A simple, double and triple. Newton 40:85 - 95:190 - 130:250

Datasheet

LINEAR / AXIAL AUTOMATIC SPRING-ACTION TENSIONERS

The linear tensioners are automatic devices that serve to maintain the correct tension of the transmission chain or belt, thereby increasing their durability.

They automatically recover any slack in the chain or belt that may develop with use, preventing the appearance of vibrations, noise and breakage due to slack.

These automatic tensioners do not require any kind of upkeep and make it possible to save time on maintenance and management of the machinery on which they are installed.

The TO—ET – TA models consist of a base in special, very sturdy, antiseize aluminium alloy with tensile strength of  440MPa that ensures perfect glide on high tensile strength galvanized steel rods, to which the chain tensioning head or shoe is fastened.They are fitted on the inside with elastic elements in steel with a very high yield point and initial preload, which makes it possible to obtain a more constant pressure excursion.In addition, the mechanical specifications of the material are such as to prevent wear on the internal elastic elements caused by movement, and to have a product of absolute excellence in this field.

The KU models are equipped with PTFE type glide bushings for the movement of the rods.

The NT models have an aluminium base with tensile strength of 240MPa, completely enclosed to prevent infiltrations by external agents. The galvanized steel rods glide thanks to self-lubricating plastic bushings.

Models TO – TA – NT have a tensioning shoe or head in wear-resistant plastic material with low friction coefficient (polyethylene 1,000,000 UHMW with dynamic dry steel friction coefficient of 0.06) and can withstand a temperature of 80°C. With different profiles, the polyethylene shoes have a wear coefficient substantially equal to zero a these temperatures and are available for ISO or ASA, simple, double and triple chain types.

The ET models are particularly indicated when working in the presence of high temperatures where rubber and plastic materials would be subject to wear. They can work at temperatures as high as 200°C.

Brackets in galvanized steel or heads in light diecast alloy are mounted on the gliding rods, where it is also possible to install pulleys, chain tensioning pinions, etc.

The ET models can also be supplied in the TIRO version.

The TO05 models are the version in plastic material and have the same mechanical parameters as the previous models.They can withstand working temperatures up to 65°C.

It is possible to produce, for all models, a version with glide rods and assembly parts in stainless style type AISI 304/316, springs in AISI 302.

The SS version completely in stainless steel has the base machined from solid AISI 304, PTFE bushings for rod glide and all mechanical parts and fasteners in AISI 304/316, spring in AISI 302.
