Drive chain tensioner

The body is made of a special anti-seize light alloy and a zinc-coated tensioning head. They include a sprocket. For chain:ISO 3/8 06B z21 - 1/2 08B z16 -1/2 08B z14 simple and double. Newton130:250
Price:
from $47.84


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Drive chain tensioner | ETHR1
Code
SPROCKET
Price

Stock

Delivery

Quantity
Download-cad

ETHR138S

3\8"x7\32"(06B1) Z21 SIMPLE
$47.84

415

11 October

pdf-- step-- sat-- x_t-- dwg-- dxf

ETHR138D

3\8"x7\32"(06B2) Z21 DOUBLE
$58.37

74

11 October

pdf-- step-- sat-- x_t-- dwg-- dxf

ETHR112SZ14

1\2"x5\16"(08B1) Z14 SIMPLE
$47.84

415

11 October

pdf-- step-- sat-- x_t-- dwg-- dxf

ETHR112S

1\2"x5\16"(08B1) Z16 SIMPLE
$48.10

415

11 October

pdf-- step-- sat-- x_t-- dwg-- dxf

ETHR112D

1\2"x5\16"(08B2) Z16 DOUBLE
$60.58

74

11 October

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

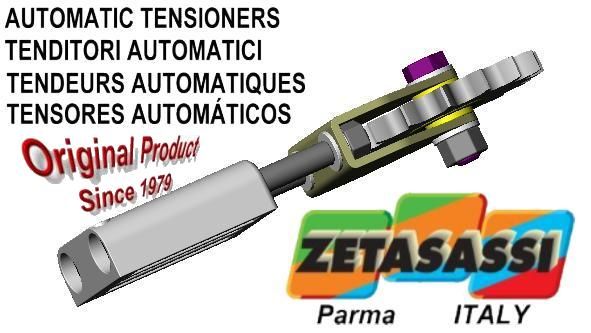

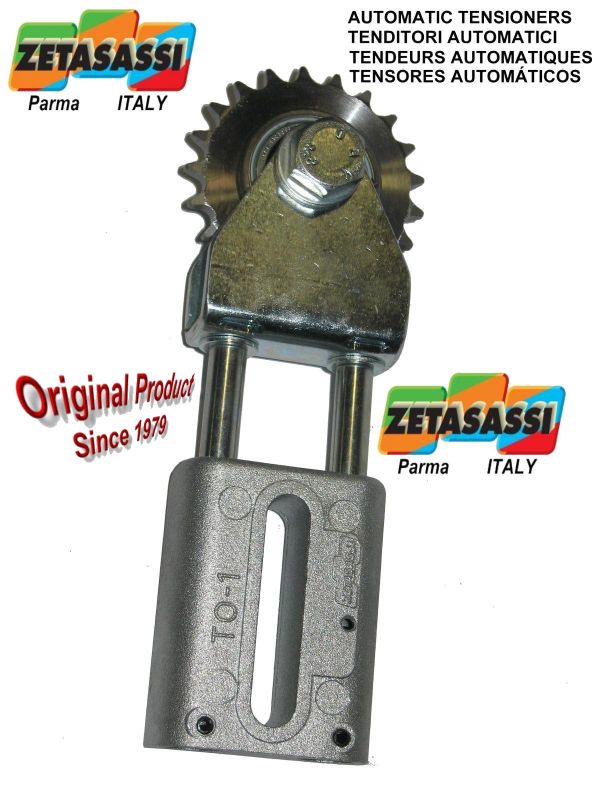

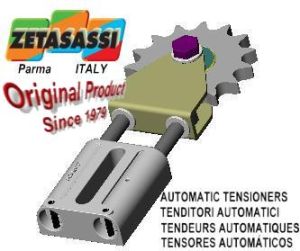

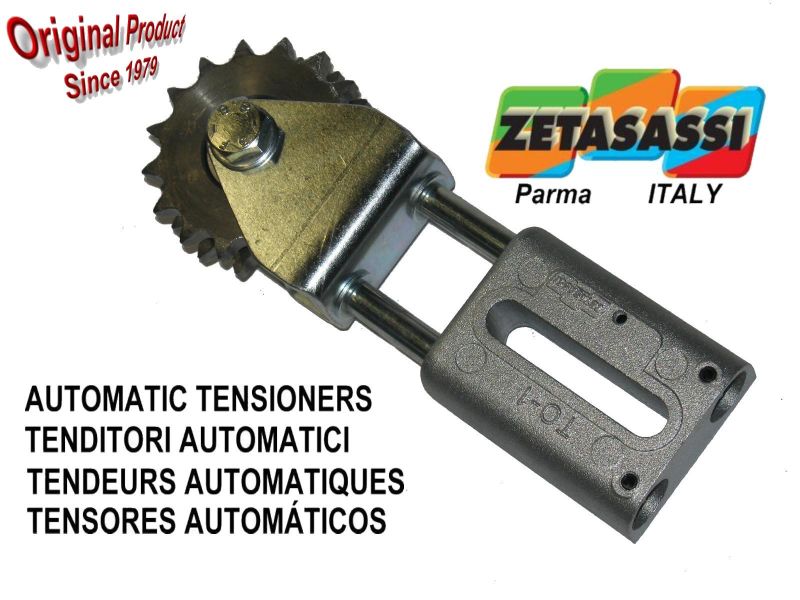

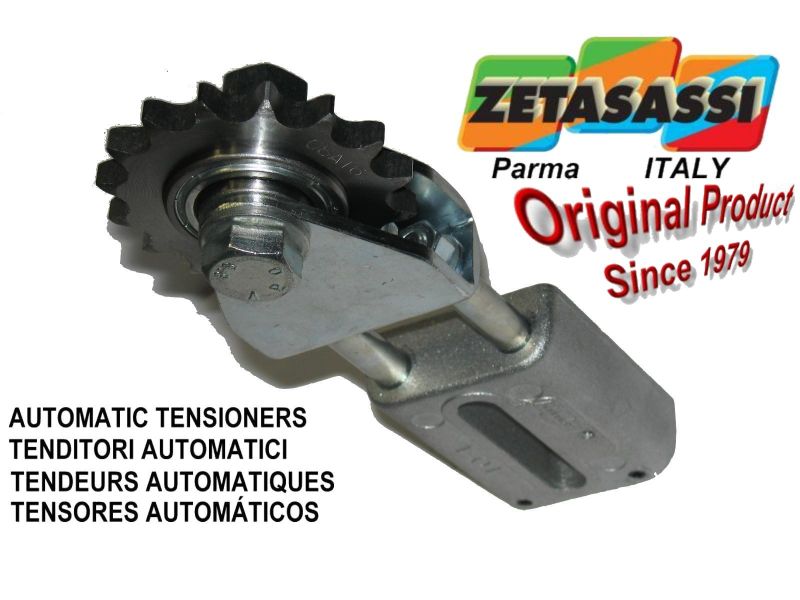

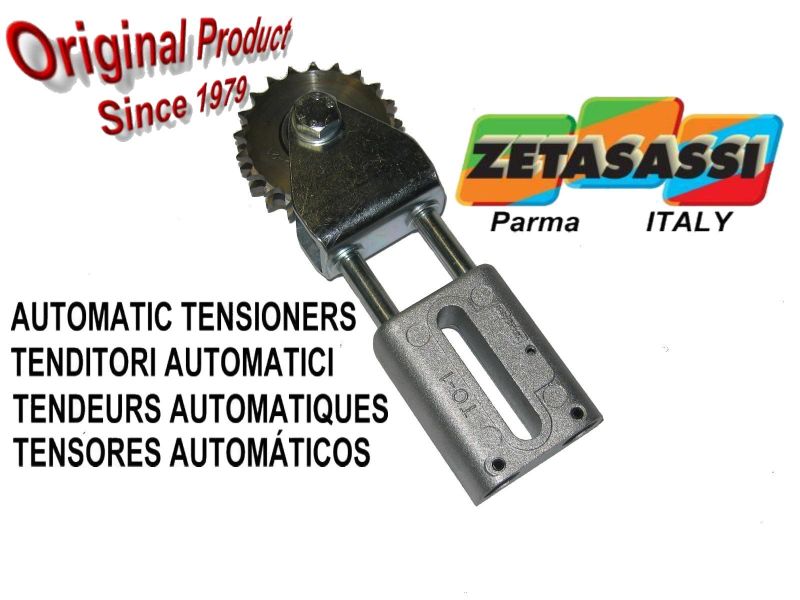

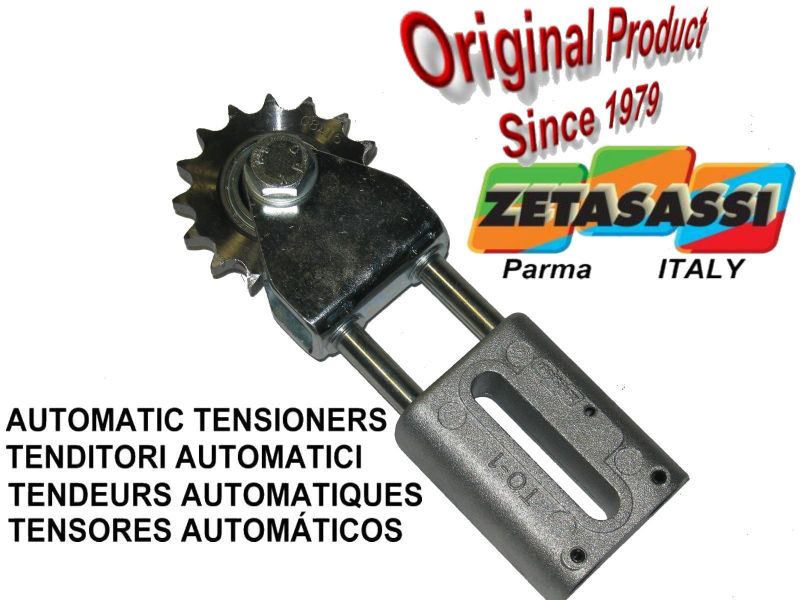

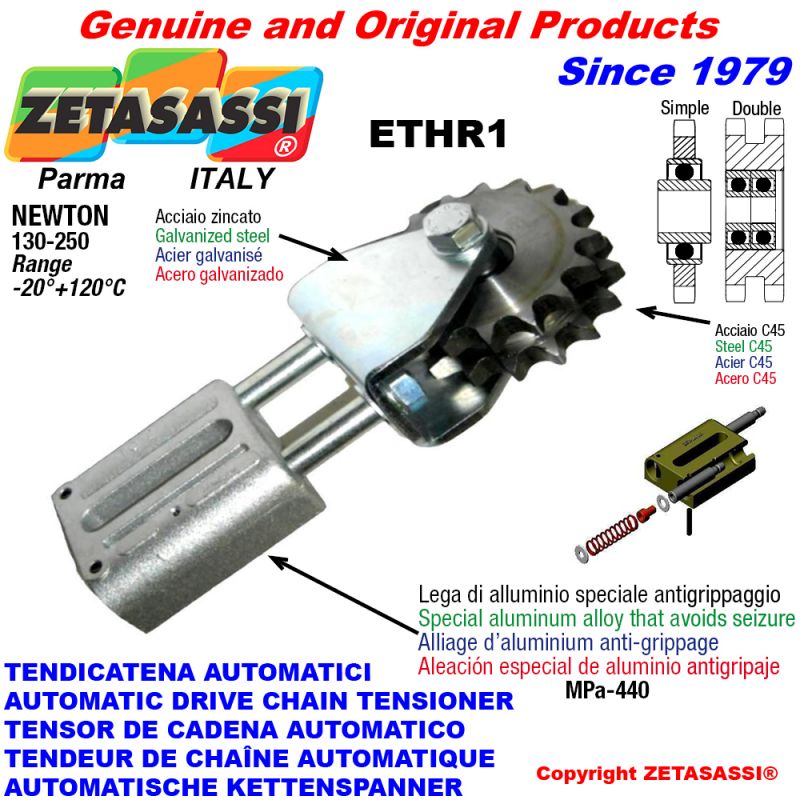

ETHR1 with fork and idler sprocket with bearings model AC, automatic device linear spring-action chain drive tensioner consisting of a base in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa that ensures perfect glide on high tensile strength galvanized steel rods, to which a U-shaped bracket in galvanized steel is fastened. The bracket is equipped with an idle chain tensioning pinion with double-shielded bearings.

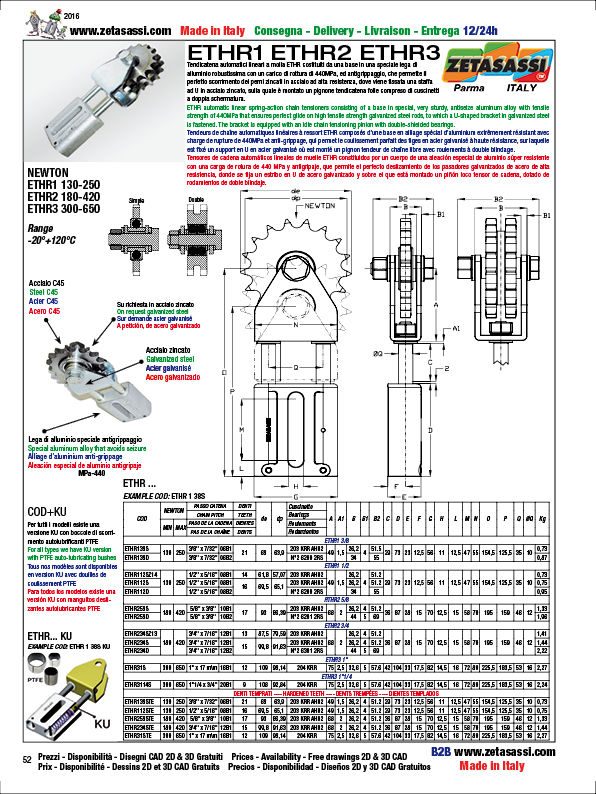

CATALOGUE PAGE

Accessories

  1. 1
    Brackets for linear tensioners
    Price:
    from $16.77
    Our ABS brackets are a good support for our tensioners. They are available with screws to set up the tensioner in the right way.They are made of zinc-coated steel, their shape blocks twisting so the tensioner keeps the right position .
  2. 2
    Idler sprocket bracket
    Price:
    from $28.34
    They support simple and double chain sprockets and are available with the sprocket set up. They are economic, strong and easy to be set up so you can avoid other solutions
  3. 3
    Linear tensioner preloading
    Price:
    from $9.88
    PRELOAD BRACKET FOR LINEAR TIGHTENERS. For all linear tensioners. Galvanized steel.
  4. 4
    Idler sprocket
    Price:
    from $5.59
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9
  5. 5
    Linear tensioner preloading block
    Price:
    $10.53
    Linear tensioner preloading block. (galvanized steel) For ali linear tensioners

Similar

  1. 1
    Drive tensioner
    Price:
    from $36.01
    The type ETH - ETHG has a special light alloy body and a zinc-coated tensioning head. Newton130:250-95:190-40:85
  2. 2
    Drive tensioner (ptfe bushes)
    Price:
    from $53.56
    The type ETH - ETHG has a special light alloy body and a zinc-coated tensioning head. Newton130:250-95:190-40:85
  3. 3
    Drive belt tensioner
    Price:
    from $63.18
    Body is made of a special anti-seize light alloy and a zinc-coated tension head including the idler rollers made Aluminium, Zinc Coated Steel and plastic material type PA6. Newton130:250
  4. 4
    Drive belt tensioner (ptfe bushes)
    Price:
    from $80.86
    Body is made of a special anti-seize light alloy and a zinc-coated tension head including the idler rollers made Aluminium, Zinc Coated Steel and plastic material type PA6. Newton130:250
  5. 5
    Drive chain tensioner (ptfe bushes)
    Price:
    from $65.39
    The body is made of a special anti-seize light alloy and a zinc-coated tensioning head. They include a sprocket. For chain:ISO 3/8 06B z21 - 1/2 08B z16 -1/2 08B z14 , simple and double. Newton130:250
  6. 6
    Drive chain tensioner (ptfe bushes)
    Price:
    from $67.34
    The body is made of a special anti-seize light alloy and a zinc-coated tensioning head. They include a hardened teeth sprocket. For chain:ISO 3/8 06B z21 - 1/2 08B z16, simple. Newton130:250
  7. 7
    Drive chain tensioner
    Price:
    from $49.92
    The body is made of a special anti-seize light alloy and a zinc-coated tensioning head. They include a hardened teeth sprocket. For chain:ISO 3/8 06B z21 - 1/2 08B z16, simple. Newton130:250
  8. 8
    Drive chain tensioner
    Price:
    from $38.35
    Body is made of a special anti-seize light alloy, aluminium tensioning head and it includes a sprocket.For chain:ISO 3/8 06B z21 - 1/2 08B z16 - 5/8 10B z17 - 3/4 12B z15. Simple and double. Newton130:250-95:190
  9. 9
    Drive chain tensioner (ptfe bushes)
    Price:
    from $58.24
    Body is made of a special anti-seize light alloy, aluminium tensioning head and it includes a sprocket.For chain:ISO 3/8 06B z21 - 1/2 08B z16 - 5/8 10B z17 - 3/4 12B z15. Simple and double. Newton130:250-95:190
  10. 10
    Drive chain tensioner (ptfe bushes)
    Price:
    from $60.19
    Body is made of a special anti-seize light alloy, aluminium tensioning head and it includes a sprocket.For chain:ISO 3/8 06B z21 - 1/2 08B z16 - 5/8 10B z17 - 3/4 12B z15. Simple. Newton130:250-95:190
  11. 11
    Drive chain tensioner
    Price:
    from $40.43
    Body is made of a special anti-seize light alloy, aluminium tensioning head and it includes a sprocket.For chain:ISO 3/8 06B z21 - 1/2 08B z16 - 5/8 10B z17 - 3/4 12B z15. Simple. Newton130:250-95:190
  12. 12
    Drive chain tensioner
    Price:
    from $38.35
    Body is made of a special anti-seize light alloy, aluminium tensioning head and it includes a sprocket.For chain:ISO 3/8 06B z15 - 1/2 08B z15 - 5/8 10B z15 - 3/4 12B z15. Simple, double, triple. Newton130:250-95:190
  13. 13
    Drive chain tensioner (ptfe bushes)
    Price:
    from $58.24
    Body is made of a special anti-seize light alloy, aluminium tensioning head and it includes a sprocket.For chain:ISO 3/8 06B z15 - 1/2 08B z15 - 5/8 10B z15 - 3/4 12B z15. Simple, double, triple. Newton130:250-95:190

Datasheet

AUTOMATIC CHAIN AND BELT TENSIONERS

LINEAR - AXIAL

Our TO, TA and ET series of linear tensioners were designed in 1979 and patented in 1981. We were the first in the world to manufacture linear chain tensioners which used bolts, third in the world and first in Italy to manufacture and design automatic tensioners in general.

Initially designed with an aluminium body equipped with bushes for the bolts, they were then modified using die cast technology. In fact, there is no longer the need to use sliding bushes. The bodies are made of a special mixture of alloys, not only light alloys.

This alloy is heavier thus giving a more robust structure which can better withstand temperatures, creating as little displacement as possible from its tolerances. They are also anti-seize so that internal bolts can slide perfectly; in fact, the clearance in the bolts is reduced to 0,05:0,13 m/m and all our castings are machined using our own CNCs.

These tensioners are also available in a KU version with self-lubricating sliding bushes; the bodies are made of light alloy and not purely aluminium. We have learnt from experience that aluminium has some displacement due to temperature changes which can, in time, lead to problems with the tolerances of the bushes themselves. We have assured the mechanical hold of the bushes by using this mixture together with specific manufacturing techniques using our CNC machinery. The clearance of the bolts falls between 0,02:0,05 m/m.

Why and when to use these bushes?

They are used very rarely; usually in belt tensioners where the belts turn at high speed and there is the need to dampen frequencies on return or long sections, for example, printing machines, etc.

Or when there is the need to mount an automatic tensioner in a position which is difficult to access by the operator.

Note that in all cases of sliding bolts, a minimum amount of grease needs to be applied, either before mounting or after pro-loading, just as the bolts need to be greased over the life of the machine during its normal maintenance.

In most cases, it is better to use the model without the bushes which we recommend.  In fact, where there is a need to quickly retrieve the pre-load point (for example, the start of a transmission without a deceleration or acceleration ramp) where the automatic tensioner must be able to quickly retrieve the starting point, and sliding bushes, which decrease clearance on the bolts, are not always the right choice…

Or, it may not be opportune to use them where there is too much moisture or the formation of condensation; in this case we suggest you look at our NT model.

Our NT series automatic chain tensioner was designed in around 2000 and patented in 2001.

It was designed to meet the requirement for a completely closed automatic chain tensioner, to prevent infiltrations (dust from cement, ceramics, dust, sugar, flour, etc.).

Given the experience gained from our earlier models and to maintain sustainable production costs, we designed the product in aluminium and the self-lubricating sliding bushes in plastic, thus allowing the aluminium of the body to displace depending on the temperature but not to affect the sliding action of the bolts. In fact, the bushes are blocked for interference and also have a specifically-designed locking pin so as not to lose tolerances (we know that plastic materials move through humidity present in the air).  The clearance on the pins is between 0,06:0,16 m/m.

The heart of a machine is its transmission; to protect it, we offer the best quality Made in Italy products.

If you would like further information about our products, please contact us and we will be pleased to advise you on the right product to suit your applications.
