Chain tensioner device

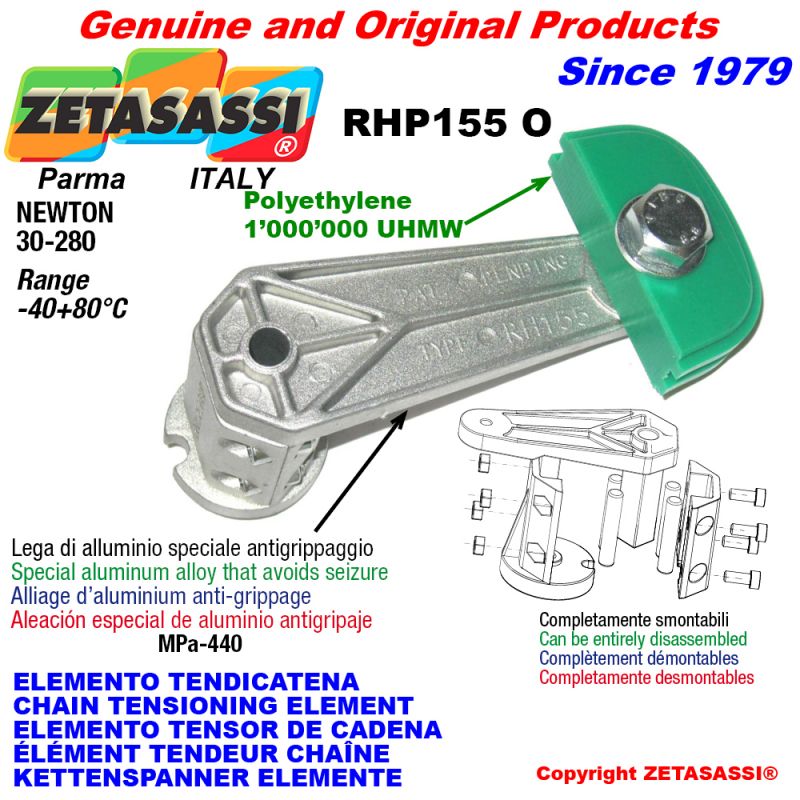

Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
Price:
from $31.33


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Chain tensioner device | RHP155O
Code
NEWTON
CHAIN
Price

Stock

Delivery

Quantity
Download-cad

RHP155TO1OU

30-280
8x3 3/8" 1/2" SIMPLE
$31.98

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO1O38S

30-280
3\8"x7\32"(06B1) SIMPLE
$31.33

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO1O38D

30-280
3\8"x7\32"(06B2) DOUBLE
$31.33

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO1O12S

30-280
1\2"x5\16"(08B1) SIMPLE
$31.33

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO1O12D

30-280
1\2"x5\16"(08B2) DOUBLE
$31.33

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO2O58S

30-280
5\8"x3\8"(10B1) SIMPLE
$33.54

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO2O58D

30-280
5\8"x3\8"(10B2) DOUBLE
$36.01

33

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO2O34S

30-280
3\4"x7\16"(12B1) SIMPLE
$33.54

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO2O34D

30-280
3\4"x7\16"(12B2) DOUBLE
$36.79

92

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO3O1S

30-280
1"X17m\m(16B1) SIMPLE
$37.44

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO3O114S

30-280
1"¼ x 3\4"(20B1) SIMPLE
$37.44

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO3O112S

30-280
1"½ X 1"(24B1) SIMPLE
$37.44

156

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO1OASA35S

30-280
ASA35(06C1) SIMPLE
$33.15

250

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO1OASA35D

30-280
ASA35(06C2) DOUBLE
$33.15

200

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO1OASA40S

30-280
ASA40(08A1) SIMPLE
$34.06

221

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO1OASA40D

30-280
ASA40(08A2) DOUBLE
$36.40

190

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO2OASA50S

30-280
ASA50(10A1) SIMPLE
$36.27

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO2OASA50D

30-280
ASA50(10A2) DOUBLE
$39.13

178

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO2OASA60S

30-280
ASA60(12A1) SIMPLE
$36.27

121

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO3OASA80S

30-280
ASA80(16A1) SIMPLE
$41.86

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO3OASA100S

30-280
ASA100(20A1) SIMPLE
$41.86

316

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RHP155TO3OASA120S

30-280
ASA120(24A1) SIMPLE
$41.86

100

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

CHAIN TENSIONER ELEMENT RHP155 with chain slider oval head automatic device rotating chain elemets arm tensioners devices with rubber, consisting of a lever, base and lid in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa.These tensioners can be entirely disassembled and have a tensioning angle of 30° in both directions of rotation.Equipped with chain tensioning shoe in polyethylene 1,000,000 UHMW.

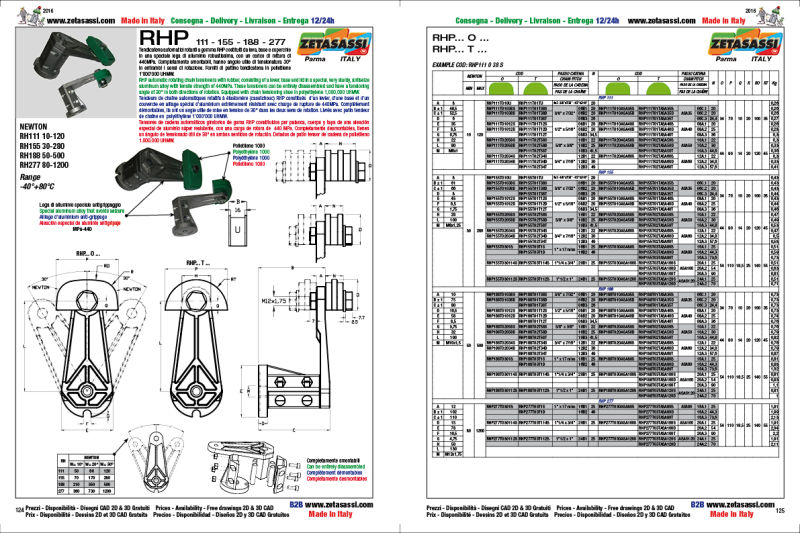

CATALOGUE PAGE

Accessories

  1. 1
    Chain slider
    Price:
    from $10.14
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  2. 2
    Chain slider
    Price:
    from $5.46
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  3. 3
    Chain slider
    Price:
    from $12.61
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  4. 4
    Chain slider
    Price:
    from $6.37
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  5. 5
    Rubber for rh tensioners
    Price:
    from $3.12
    RUBBER FOR RH TENSIONERS
  6. 6
    Brackets for rh rotary tensioners
    Price:
    from $8.58
    Supporting brackets in galvanized steel for rotating tensioners in rubber model RH.
  7. 7
    Rh rotary tensioner preloading
    Price:
    from $6.24
    Preloads and antirotation safety systems in galvanized steel for rotating tensioners in rubber model RH. To be used when installing the tensioners on imperfect or irregular surfaces.
  8. 8
    Chain slider kit
    Price:
    from $10.14
    PE 1000 UHMW Chain slider, icluded bolt and nut. For chain :3/8"x7/32" 1/2"x5/16" 5/8"x3/8" 3/4"x7/16"
  9. 9
    Chain slider
    Price:
    from $6.24
    PE 1000 UHMW Chain slider. For chain :3/8"x7/32" 1/2"x5/16" 5/8"x3/8" 3/4"x7/16"

Similar

  1. 1
    Directable rotary drive chain tensioner
    Price:
    from $27.30
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
  2. 2
    Directable rotary drive chain tensioner
    Price:
    from $28.21
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
  3. 3
    Chain tensioner device
    Price:
    from $27.43
    Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
  4. 4
    Chain tensioner device
    Price:
    from $28.34
    Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
  5. 5
    Chain tensioner device
    Price:
    from $32.37
    Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
  6. 6
    Chain tensioner device
    Price:
    from $35.49
    Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
  7. 7
    Chain tensioner device
    Price:
    from $36.40
    Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
  8. 8
    Chain tensioner device
    Price:
    from $55.64
    Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
  9. 9
    Chain tensioner device
    Price:
    from $57.46
    Type RHP have light alloy body and lever and a PE 1000 UHMW tensioning head. Inside the bases there are 4 rubber elastomers with high elastic memory.
  10. 10
    Arm chain tensioner
    Price:
    from $28.21
    Plastic material POM body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 75° in both sense of rotation
  11. 11
    Arm chain tensioner
    Price:
    from $29.12
    Plastic material POM body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 75° in both sense of rotation
  12. 12
    Arm chain tensioner
    Price:
    from $29.25
    Light alloy body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 60° in both sense of rotation.
  13. 13
    Arm chain tensioner
    Price:
    from $30.03
    Light alloy body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 60° in both sense of rotation.
  14. 14
    Arm chain tensioner
    Price:
    from $42.64
    Light alloy body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 45° in both sense of rotation.
  15. 15
    Arm chain tensioner
    Price:
    from $43.29
    Light alloy body and lever/arm and a tensioning head made of PE1000 UHMW. Useful tensioning angle 45° in both sense of rotation.
  16. 16
    Rotary arm chain tensioner
    Price:
    from $38.61
    Types TRP1 and TRP2 have a light alloy body and a zinc-coated lever plus PE1000 UHMW tensioning head.
  17. 17
    Rotary arm chain tensioner
    Price:
    from $39.52
    Types TRP1 and TRP2 have a light alloy body and a zinc-coated lever plus PE1000 UHMW tensioning head.
  18. 18
    Rotary arm chain tensioner
    Price:
    from $53.69
    Types TRP1 and TRP2 have a light alloy body and a zinc-coated lever plus PE1000 UHMW tensioning head.
  19. 19
    Rotary arm chain tensioner
    Price:
    from $54.73
    Types TRP1 and TRP2 have a light alloy body and a zinc-coated lever plus PE1000 UHMW tensioning head.

Datasheet

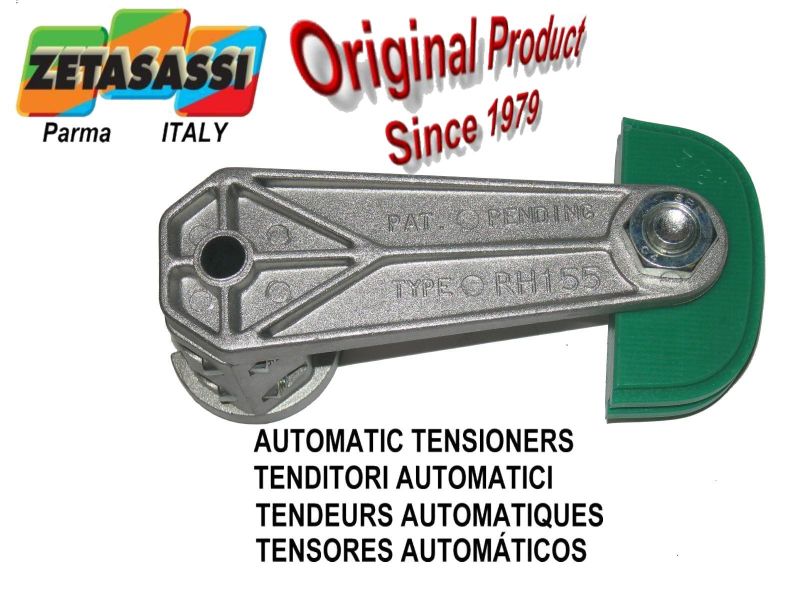

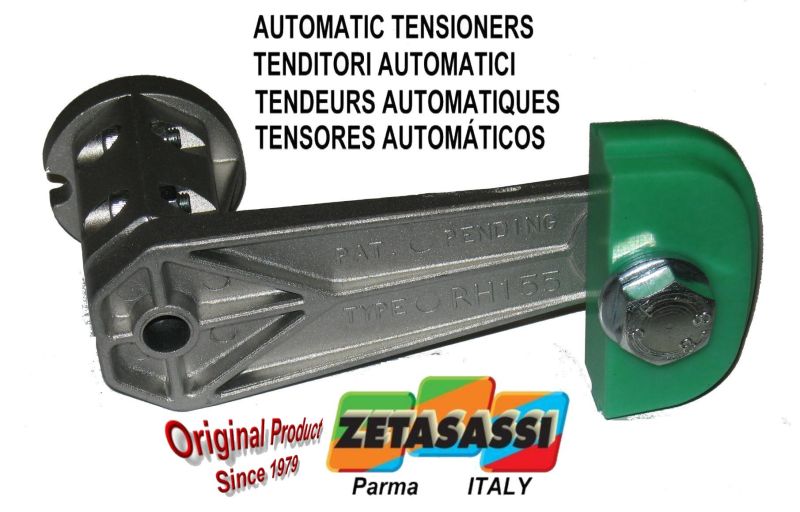

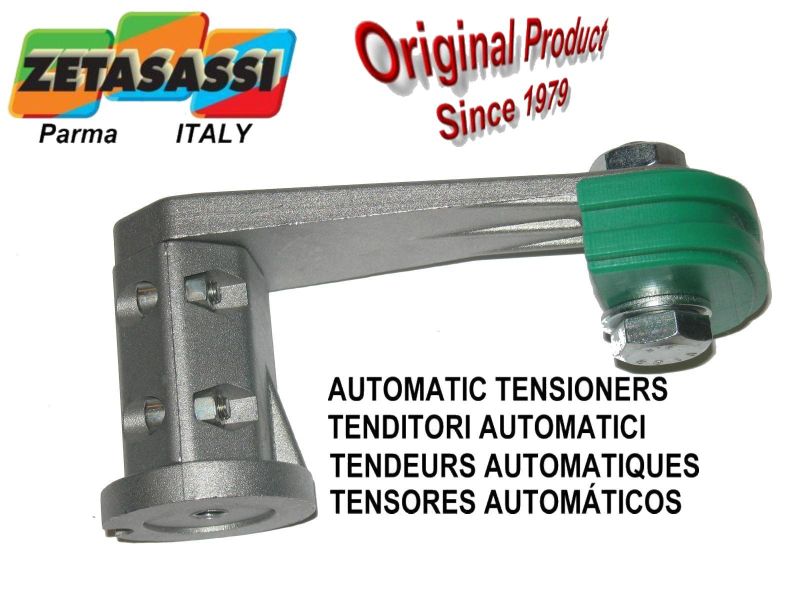

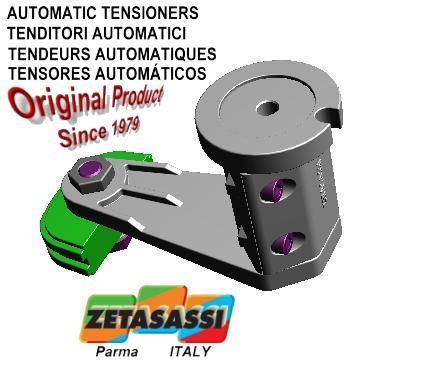

AUTOMATIC ROTATING AND ROTARY TENSIONERS ELEMENTS WITH RUBBER

RH type automatic tensioners are automatic devices that serve to maintain the correct tension of the transmission chain or belt, thereby increasing their durability.

They automatically recover any slack in the chain or belt that may develop with use, preventing the appearance of vibrations, noise and breakage due to slack.

These automatic tensioners do not require any kind of upkeep and make it possible to save time on maintenance and management of the machinery on which they are installed.

The RH models consist of a base, lever and cap in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa.Four elastomers are positioned inside the base, the square of the lever is positioned on them and they are fastened together by the cap.

The feature that makes our RH tensioners unique is that they can be dismantled for maintenance and/or to replace the elastomers.In fact, unlike the steel springs, which last practically forever, the elastomers may, though only after a very long time, lose their initial characteristic. Moreover, in case of overloads where, for reasons not depending on the tensioner (such as improper installation or overload of the transmission) this may cause the lever to separate from the base.With our RH tensions you can simply unscrew the cap and reposition the lever, or replace the elastomers, screw the cap back on and the product will reacquire its initial characteristics.

These tensioners are characterized in particular by certain main features:

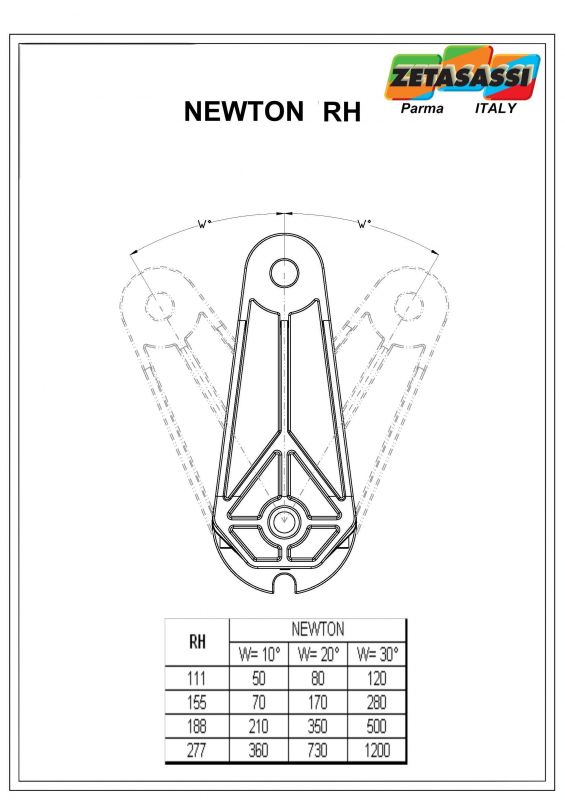

-Tensioning angle 30° in both directions of rotation.

-Elastomers with a very high yield point and initial preload to ensure a stroke at the most constant pressure possible.

-Ease of assembly, as they can be fastened to the machine with screws either from the inside or from the outside.

-They are equipped with stop slots to block rotation in case of installation on imperfect or irregular surfaces

-The quality of the materials, care in construction, simplicity of operation and economical price make them an economical, practical, safe product.

The tensioners can be supplied with chain tensioning shoes in polyethylene 1,000,000 UHMW with dynamic dry steel friction coefficient 0.06 or chain tensioning pinions, belt tensioning rollers and idle pulleys.
