Arm tensioner

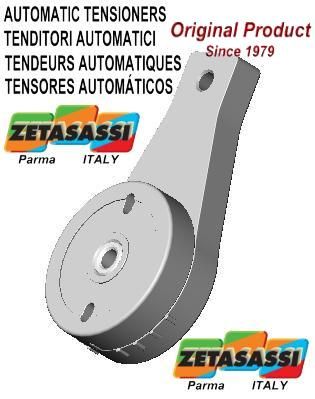

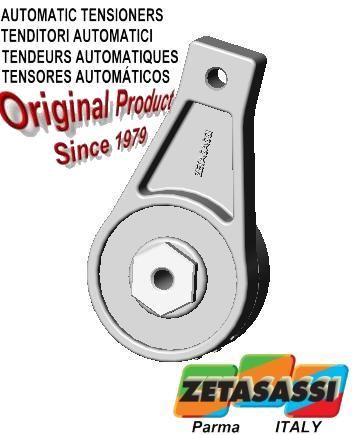

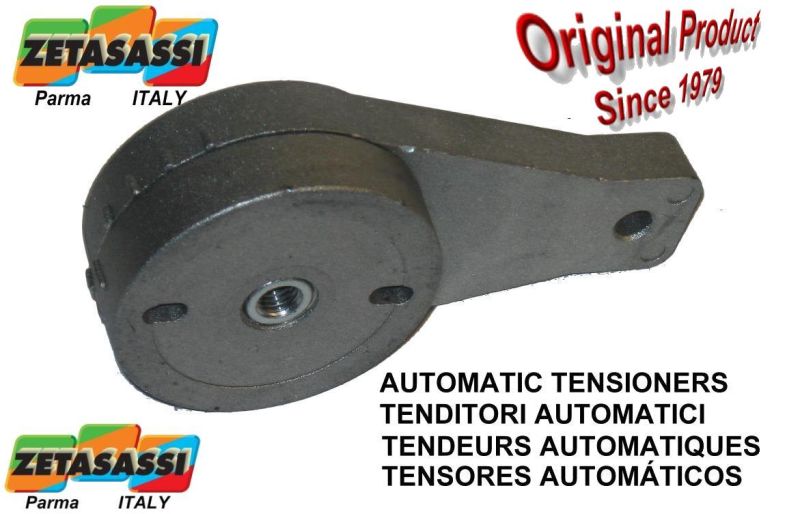

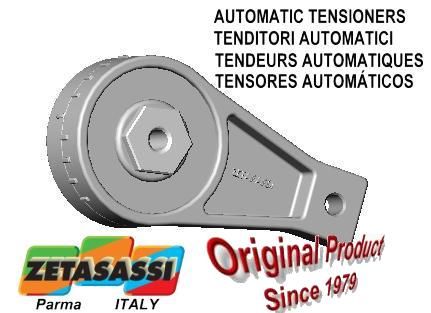

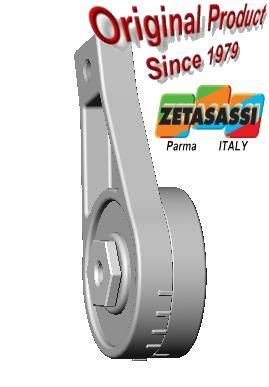

They have the body and the lever made of a special anti-seize light alloy perfect for this use. Useful tensioning angle 60° in both sense of rotation. Lack of synthetic materials so they can work with temperatures up to 130°C.
Price:
from $21.32


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Arm tensioner | TC1
Code
NEWTON
HOLE

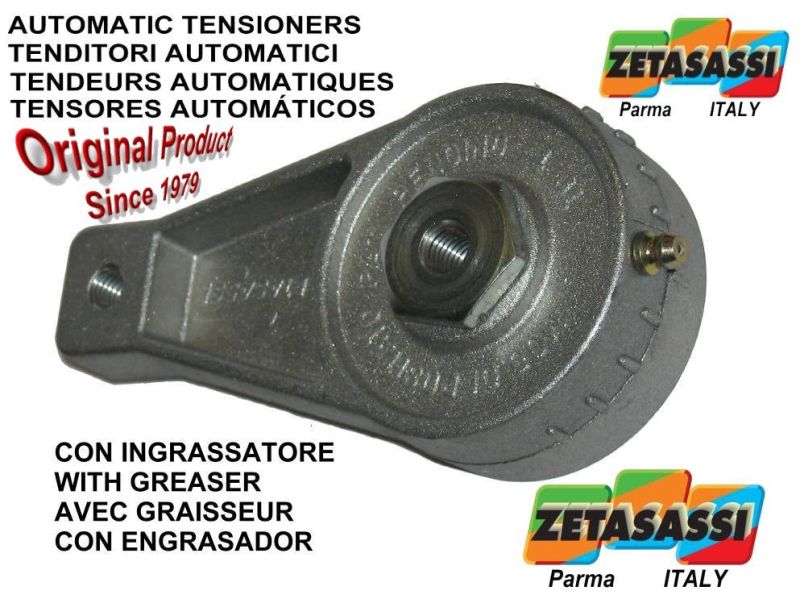

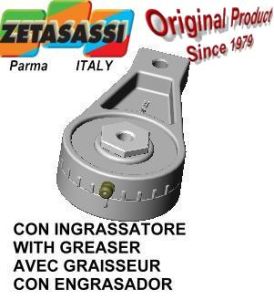

GREASER
Price

Stock

Delivery

Quantity
Download-cad

TC1

50-180
Ø 8,2 m\m
NO
$21.32

8,628

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

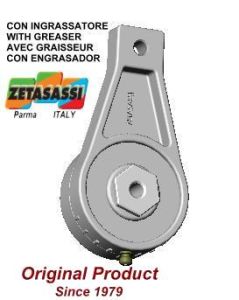

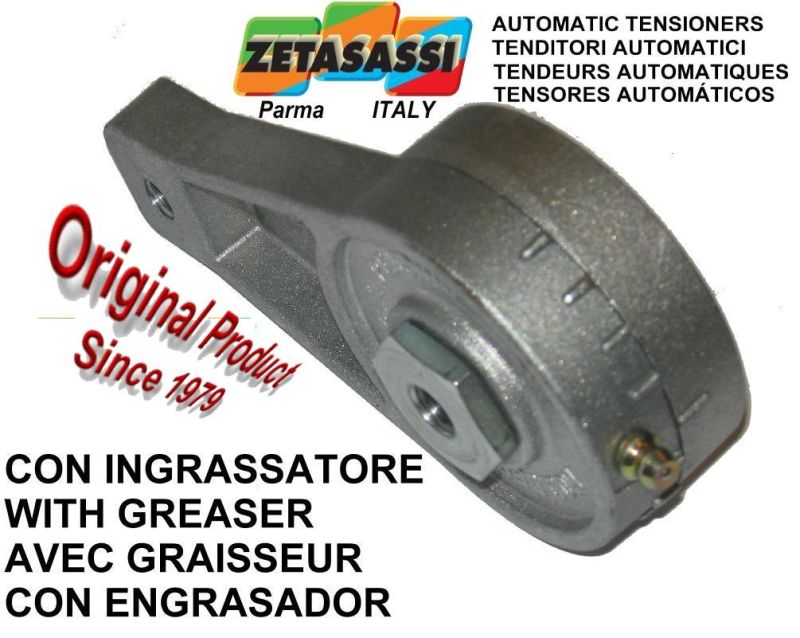

TC1ING

50-180
Ø 8,2 m\m
YES
$24.96

6,303

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1105

50-180
Ø 10,5 m\m
NO
$22.88

8,638

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1105ING

50-180
Ø 10,5 m\m
YES
$26.78

2,279

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1125

50-180
Ø 12,5 m\m
NO
$22.88

8,636

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1125ING

50-180
Ø 12,5 m\m
YES
$26.78

2,279

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1145

50-180
Ø 14,5 m\m
NO
$24.05

8,636

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1145ING

50-180
Ø 14,5 m\m
YES
$26.78

2,279

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1M10

50-180
M10 X 1,5 m\m
NO
$22.36

6,906

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1M10ING

50-180
M10 X 1,5 m\m
YES
$26.00

3,986

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1M12

50-180
M12 X 1,75 m\m
NO
$22.36

7,418

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1M12ING

50-180
M12 X 1,75 m\m
YES
$26.00

3,435

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1M14

50-180
M14 X 2 m\m
NO
$25.48

8,636

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1M14ING

50-180
M14 X 2 m\m
YES
$26.00

2,279

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1M16

50-180
M16 X 2 m\m
NO
$24.05

9,010

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TC1M16ING

50-180
M16 X 2 m\m
YES
$26.00

2,282

20 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

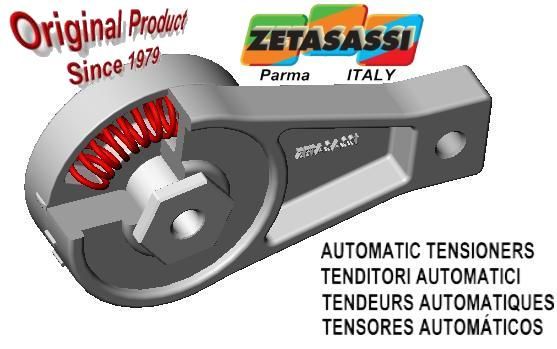

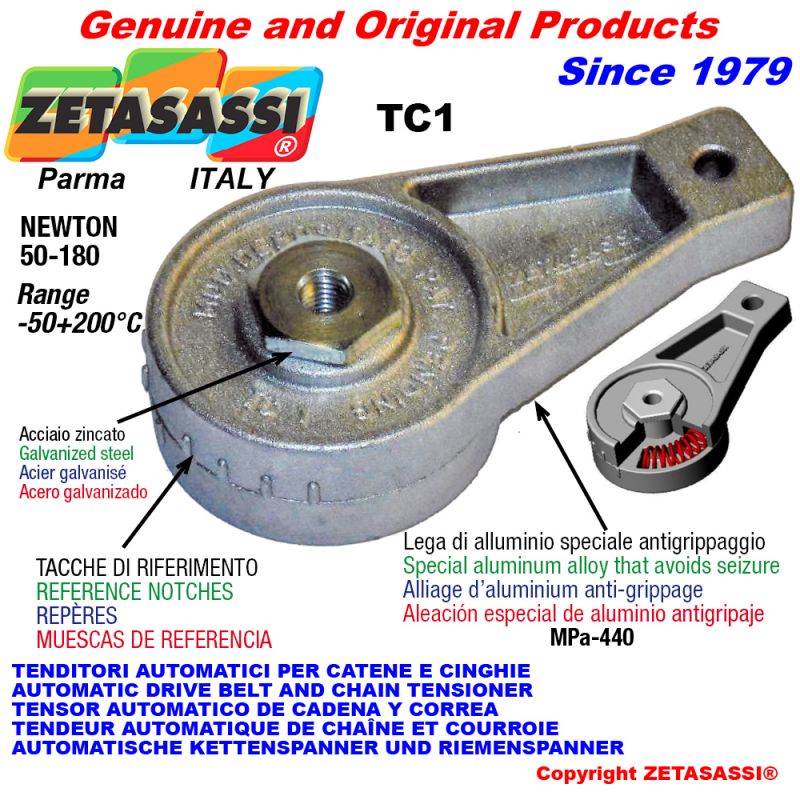

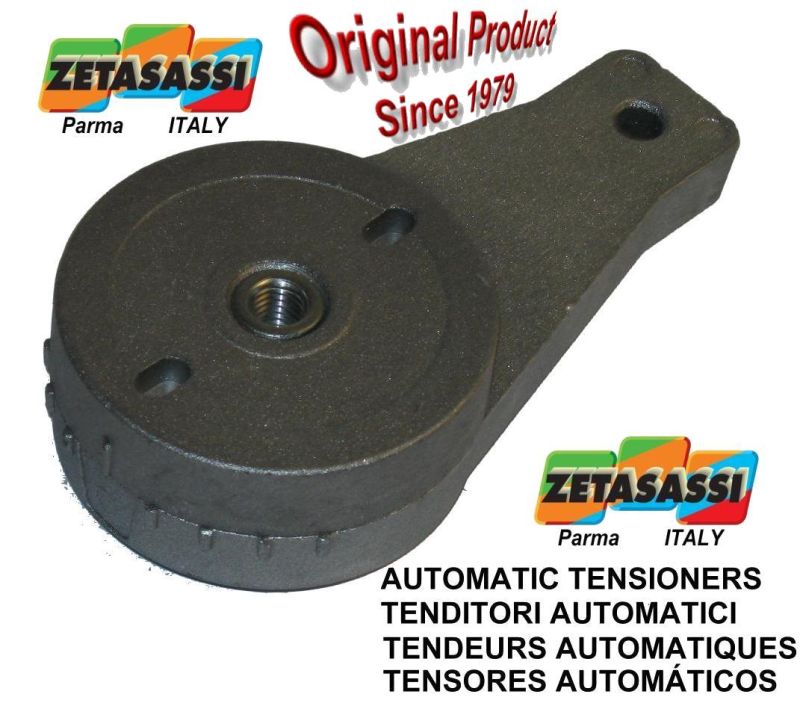

TC1 with hole or threaded bore, automatic device rotating spring-action arm tensioners consisting of a base and lever in special very sturdy antiseize aluminium alloy with tensile strength of 440MPa.Tensioning angle 60° in both directions of rotation.

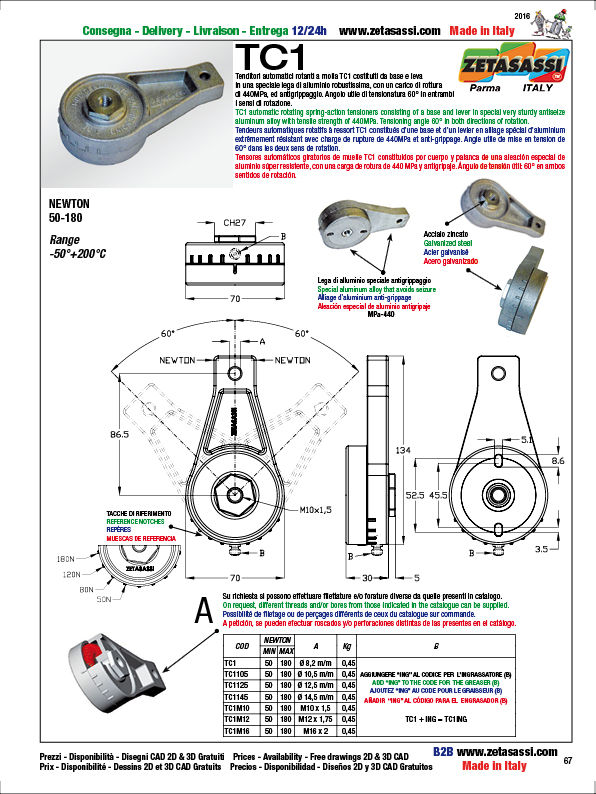

CATALOGUE PAGE
