Rotary arm belt tensioner

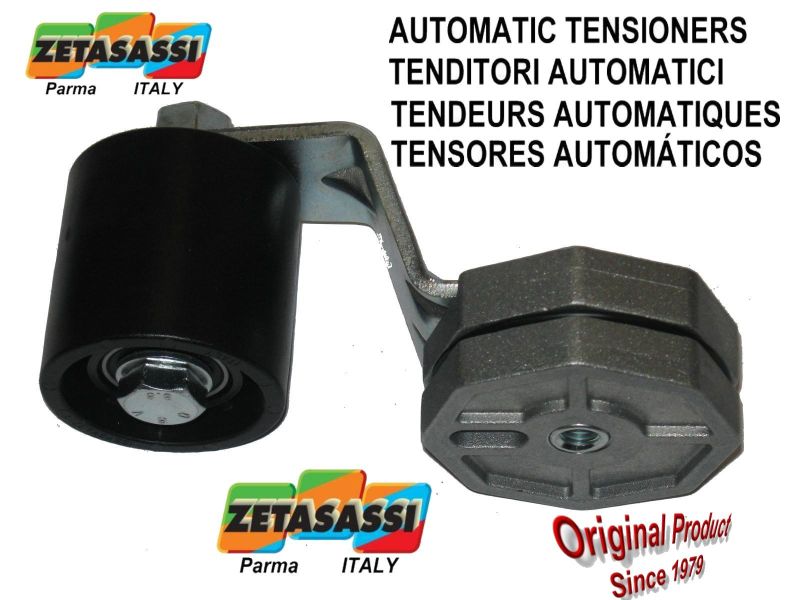

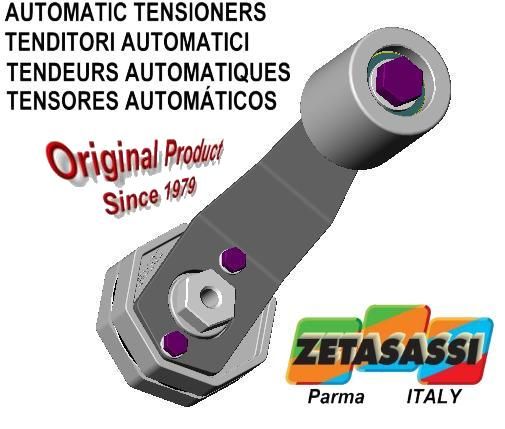

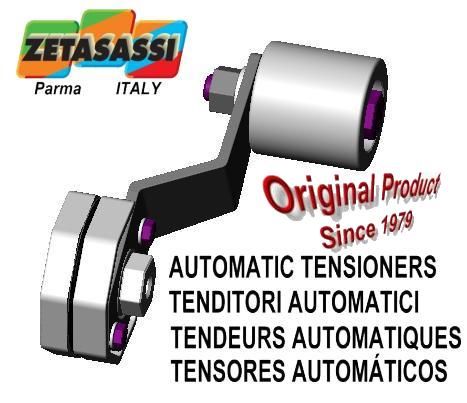

The type TR1PU have a light alloy body and galvanized steel lever/arm and a idler rollers. TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.
Price:
from $42.25


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Rotary arm belt tensioner | TR1PU
Code
LEVER
PULLEY
MATERIAL
Price

Stock

Delivery

Quantity
Download-cad

TR1PU1103035NY

110 (Newton 50:200)
Ø30 x L35 (m\m)
NYLON
$43.81

88

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1103035AC

110 (Newton 50:200)
Ø30 x L35 (m\m)
ZINC-COATED STEEL
$46.54

95

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1103035AL

110 (Newton 50:200)
Ø30 x L35 (m\m)
ALUMINUM
$46.28

88

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1104045NY

110 (Newton 50:200)
Ø40 x L45 (m\m)
NYLON
$45.63

80

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1105050NY

110 (Newton 50:200)
Ø50 x L50 (m\m)
NYLON
$45.63

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1105050AC

110 (Newton 50:200)
Ø50 x L50 (m\m)
ZINC-COATED STEEL
$53.69

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1105050AL

110 (Newton 50:200)
Ø50 x L50 (m\m)
ALUMINUM
$49.92

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1106060NY

110 (Newton 50:200)
Ø60 x L60 (m\m)
NYLON
$50.05

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1106060AC

110 (Newton 50:200)
Ø60 x L60 (m\m)
ZINC-COATED STEEL
$56.29

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1106060AL

110 (Newton 50:200)
Ø60 x L60 (m\m)
ALUMINUM
$55.64

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1108080NY

110 (Newton 50:200)
Ø80 x L80 (m\m)
NYLON
$63.83

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1108080AC

110 (Newton 50:200)
Ø80 x L80 (m\m)
ZINC-COATED STEEL
$70.85

64

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1108080AL

110 (Newton 50:200)
Ø80 x L80 (m\m)
ALUMINUM
$70.85

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1108090NY

110 (Newton 50:200)
Ø80 x L90 (m\m)
NYLON
$67.73

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1108090AC

110 (Newton 50:200)
Ø80 x L90 (m\m)
ZINC-COATED STEEL
$76.57

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1108090AL

110 (Newton 50:200)
Ø80 x L90 (m\m)
ALUMINUM
$76.57

70

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1113035NY

111 (Newton 50:210)
Ø30 x L35 (m\m)
NYLON
$42.25

2,598

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1113035AC

111 (Newton 50:210)
Ø30 x L35 (m\m)
ZINC-COATED STEEL
$44.98

3,076

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1113035AL

111 (Newton 50:210)
Ø30 x L35 (m\m)
ALUMINUM
$44.59

1,939

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1114045NY

111 (Newton 50:210)
Ø40 x L45 (m\m)
NYLON
$45.63

152

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1115050NY

111 (Newton 50:210)
Ø50 x L50 (m\m)
NYLON
$45.63

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1115050AC

111 (Newton 50:210)
Ø50 x L50 (m\m)
ZINC-COATED STEEL
$53.69

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1115050AL

111 (Newton 50:210)
Ø50 x L50 (m\m)
ALUMINUM
$49.92

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1116060NY

111 (Newton 50:210)
Ø60 x L60 (m\m)
NYLON
$50.05

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1116060AC

111 (Newton 50:210)
Ø60 x L60 (m\m)
ZINC-COATED STEEL
$56.29

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1116060AL

111 (Newton 50:210)
Ø60 x L60 (m\m)
ALUMINUM
$55.64

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1118080NY

111 (Newton 50:210)
Ø80 x L80 (m\m)
NYLON
$63.83

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1118080AC

111 (Newton 50:210)
Ø80 x L80 (m\m)
ZINC-COATED STEEL
$70.85

64

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1118080AL

111 (Newton 50:210)
Ø80 x L80 (m\m)
ALUMINUM
$70.85

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1118090NY

111 (Newton 50:210)
Ø80 x L90 (m\m)
NYLON
$67.73

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1118090AC

111 (Newton 50:210)
Ø80 x L90 (m\m)
ZINC-COATED STEEL
$76.57

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1118090AL

111 (Newton 50:210)
Ø80 x L90 (m\m)
ALUMINUM
$76.57

90

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1154045NY

115 (Newton 30:175)
Ø40 x L45 (m\m)
NYLON
$44.07

1,081

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1155050NY

115 (Newton 30:175)
Ø50 x L50 (m\m)
NYLON
$45.63

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1155050AC

115 (Newton 30:175)
Ø50 x L50 (m\m)
ZINC-COATED STEEL
$53.69

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1155050AL

115 (Newton 30:175)
Ø50 x L50 (m\m)
ALUMINUM
$49.92

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1156060NY

115 (Newton 30:175)
Ø60 x L60 (m\m)
NYLON
$50.05

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1156060AC

115 (Newton 30:175)
Ø60 x L60 (m\m)
ZINC-COATED STEEL
$56.29

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1156060AL

115 (Newton 30:175)
Ø60 x L60 (m\m)
ALUMINUM
$55.64

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1158080NY

115 (Newton 30:175)
Ø80 x L80 (m\m)
NYLON
$63.83

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1158080AC

115 (Newton 30:175)
Ø80 x L80 (m\m)
ZINC-COATED STEEL
$70.85

64

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1158080AL

115 (Newton 30:175)
Ø80 x L80 (m\m)
ALUMINUM
$70.85

159

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1158090NY

115 (Newton 30:175)
Ø80 x L90 (m\m)
NYLON
$67.73

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1158090AC

115 (Newton 30:175)
Ø80 x L90 (m\m)
ZINC-COATED STEEL
$76.57

109

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1158090AL

115 (Newton 30:175)
Ø80 x L90 (m\m)
ALUMINUM
$76.57

105

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1184045NY

118 (Newton 30:175)
Ø40 x L45 (m\m)
NYLON
$44.72

1,081

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1185050NY

118 (Newton 30:175)
Ø50 x L50 (m\m)
NYLON
$46.28

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1185050AC

118 (Newton 30:175)
Ø50 x L50 (m\m)
ZINC-COATED STEEL
$54.21

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1185050AL

118 (Newton 30:175)
Ø50 x L50 (m\m)
ALUMINUM
$50.44

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1186060NY

118 (Newton 30:175)
Ø60 x L60 (m\m)
NYLON
$50.57

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1186060AC

118 (Newton 30:175)
Ø60 x L60 (m\m)
ZINC-COATED STEEL
$56.81

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1186060AL

118 (Newton 30:175)
Ø60 x L60 (m\m)
ALUMINUM
$56.29

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1188080NY

118 (Newton 30:175)
Ø80 x L80 (m\m)
NYLON
$64.48

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1188080AC

118 (Newton 30:175)
Ø80 x L80 (m\m)
ZINC-COATED STEEL
$71.37

64

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1188080AL

118 (Newton 30:175)
Ø80 x L80 (m\m)
ALUMINUM
$71.37

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1188090NY

118 (Newton 30:175)
Ø80 x L90 (m\m)
NYLON
$68.25

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1188090AC

118 (Newton 30:175)
Ø80 x L90 (m\m)
ZINC-COATED STEEL
$77.22

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TR1PU1188090AL

118 (Newton 30:175)
Ø80 x L90 (m\m)
ALUMINUM
$77.22

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

TR1PU with idler roller, automatic device rotating spring-action belt arm tensioners consisting of two base elements in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa, equipped with interchangeable lever in galvanized steel.The internal and external gaskets prevent any infiltrations.  Tensioning angle 60° in both directions of rotation.Equipped with idle belt tensioner roller with double-shielded bearings.

CATALOGUE PAGE

Accessories

  1. 1
    Lever for tr1 tensioner
    Price:
    from $6.89
    TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity. For type TR1 we have lever 110,111,115,118 and for type TR2 the levers 210,218,227.
  2. 2
    Idler rollers steel-aluminium-nylon
    Price:
    from $11.44
    Our IDLER ROLLERS PU can be made of Aluminium, Zinc Coated Steel and plastic material type PA6. Ø30 L 35 - Ø40 L45 – Ø40 L 50 – Ø50 L 50 - Ø50 L65 – Ø60 L60 – Ø60 L90 – Ø80 L80- Ø80 L90.
  3. 3
    Brackets for tc & tr rotary tensioners
    Price:
    from $8.71
    Supporting brackets in galvanized steel for rotating spring-action tensioners model TC and TR.
  4. 4
    Tc & tr rotary tensioner preloading
    Price:
    from $13.26
    Preloads and antirotation safety systems in galvanized steel for rotating spring-actions tensioners model TC & TR, equipped with blocking dowels.To be used when installing the tensioners on imperfect or irregular surfaces.

Similar

  1. 1
    Directable rotary drive belt tensioner
    Price:
    from $33.28
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PU with idler roller ( on our catalogue you can find pulleys made of different materials and in different measures).
  2. 2
    Directable rotary drive belt tensioner
    Price:
    from $39.52
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PUG with a rim pulley and protections.
  3. 3
    Belt tensioner device
    Price:
    from $30.94
    Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
  4. 4
    Belt tensioner device
    Price:
    from $34.71
    Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
  5. 5
    Belt tensioner device
    Price:
    from $36.92
    Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
  6. 6
    Belt tensioner device
    Price:
    from $52.39
    Type RHPU have light alloy body and lever and a belt tensioning idler roller. Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever with bore and thread where you can set up the idler rollers.
  7. 7
    Arm belt tensioner
    Price:
    from $32.37
    Body and the lever made of a special anti-seize plastic material POM.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 75° in both sense of rotation.
  8. 8
    Arm belt tensioner
    Price:
    from $31.72
    Body and the lever/arm made of a special anti-seize light alloy.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 60° in both sense of rotation.
  9. 9
    Arm belt tensioner
    Price:
    from $48.75
    Body and the lever/arm made of a special anti-seize light alloy.They include a idler rollers with double shielded bearings bearings of various sizes and materials. Useful tensioning angle 45° in both sense of rotation.
  10. 10
    Rotary arm belt tensioner
    Price:
    from $55.51
    The type TR2PU have a light alloy body and galvanized steel lever/arm and a idler rollers. TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.

Datasheet

AUTOMATIC ROTATING / ROTARY TENSIONERS – CHAIN TENSIONERS – BELT TENSIONERS

Our TR model belt tensioners, chain tensioners and rotary chain tensioners were developed in 1992, first in the world for the construction of rotating chain tensions using helical springs, third in the world and first in Italy in the construction and design of automatic tensioners in general.

We can create special levers for any function, for example the interchangeable lever serves to access different heights, i.e. operate on several working levels without losing rigidity, and other levers to suit particular needs.

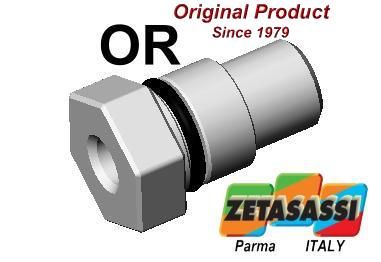

Internally and externally our tensioners are equipped with O-rings that guarantee excellent watertightness so that they can be used in environments where dirt, humidity, etc. could be a problem.

The two bases are made of a special aluminium antiseize alloy that is very sturdy, with tensile strength of 440MPa, and the device as a whole is particularly robust and long lasting thanks to the specifications of the material, for a product of absolute excellence in the field.

Thanks to the fact that we machine all the parts in-house with our CNC equipment, we have a very high level of quality control.

We remind you that the TR model rotary tensioners are pre-lubricated.

In addition to their function, our tensioners can also be used as pressing units, shock absorbers, stabilizers, etc.

Thanks to the fact that these products are entirely produced in our company, we can make specific alterations for every product, also to drawings.

Examples:

levers to drawings and/or modified;

chain tensioner shoes to drawings and/or modified;

standard limit switches or proximity sensors;

modified loading of springs;

belt tensioner rollers to drawings;

chain tensioner pinions outside of catalogue;

etc.

We have a vast warehouse and a fleet of the latest generation of CNC machines, specialized personnel with over 40 years’ experience in the sector.

The heart of the machine is its transmission, and we take care of it with the best products and quality Made in Italy.

For any other information you may need regarding our products, don’t hesitate to contact us. We’ll be able to indicate the right product for your needs.
