Tensioner device

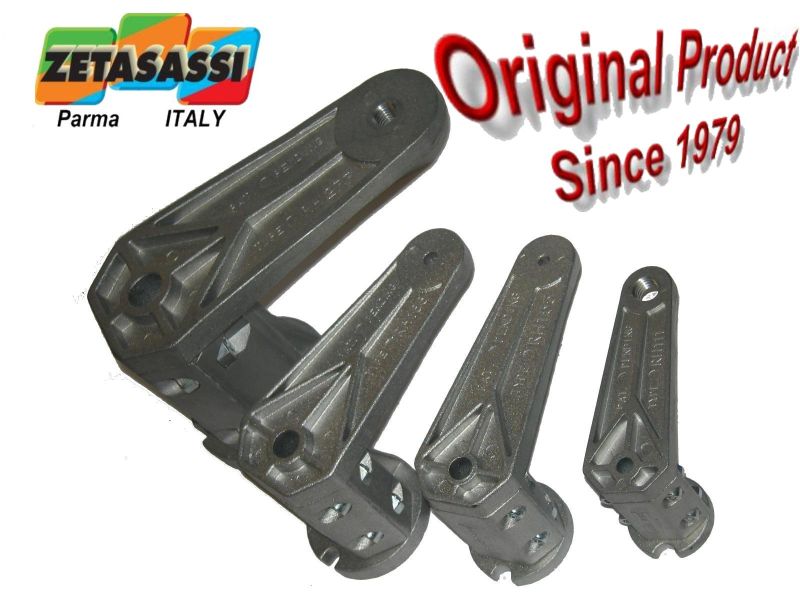

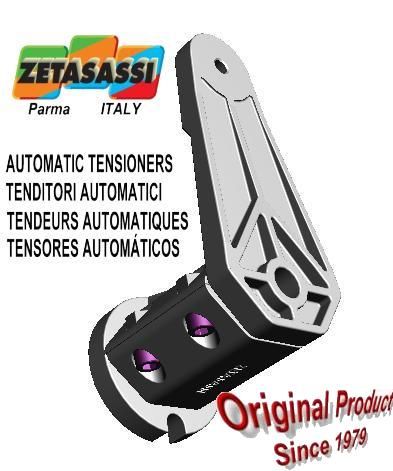

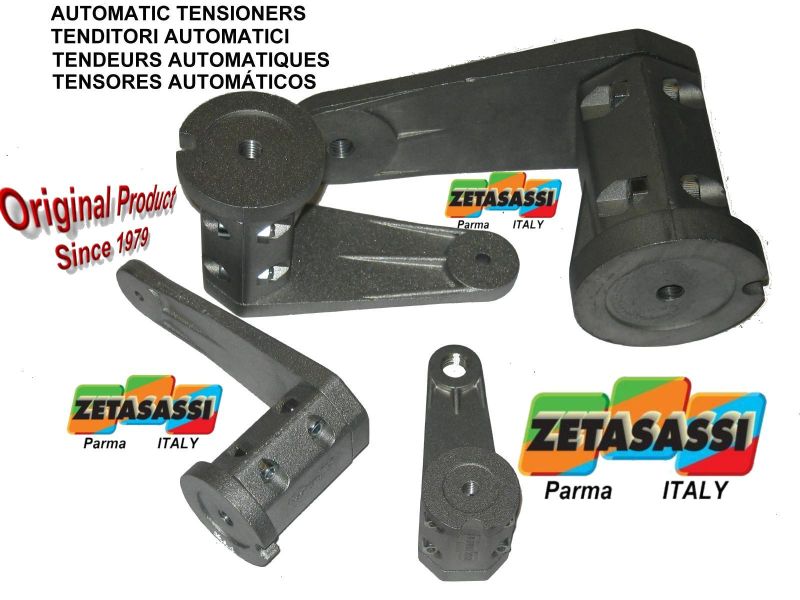

Type RH have light alloy body and lever/arm Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever/arm with bore or thread.
Price:
from $21.84


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Tensioner device | RH188
Code
NEWTON
HOLE
Price

Stock

Delivery

Quantity
Download-cad

RH188

50-500
Ø 6,5 m\m
$21.84

3,879

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RH18885

50-500
Ø 8,5 m\m
$23.66

3,269

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RH188105

50-500
Ø 10,5 m\m
$23.66

3,266

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RH188125

50-500
Ø 12,5 m\m
$23.66

3,266

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RH188M8

50-500
M8 X 1,25 m\m
$23.66

3,390

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RH188M10

50-500
M10 X 1,5 m\m
$25.48

3,365

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

RH188M12

50-500
M12 X 1,75 m\m
$25.48

3,568

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

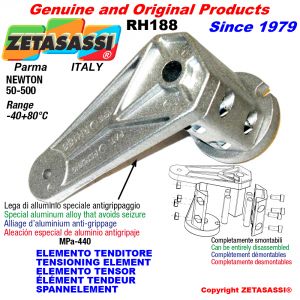

ELEMENT RH188 with hole or threaded bore, automatic device rotating elemets arm tensioners devices with rubber, consisting of a lever, base and lid in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa.These tensioners can be entirely disassembled and have a tensioning angle of 30° in both directions of rotation.

CATALOGUE PAGE

Accessories

  1. 1
    Idler rollers steel-aluminium-nylon
    Price:
    from $11.44
    Our IDLER ROLLERS PU can be made of Aluminium, Zinc Coated Steel and plastic material type PA6. Ø30 L 35 - Ø40 L45 – Ø40 L 50 – Ø50 L 50 - Ø50 L65 – Ø60 L60 – Ø60 L90 – Ø80 L80- Ø80 L90.
  2. 2
    Rim pulley with bearings
    Price:
    from $17.68
    type PUG rim pulley ( A) made of PA6 plastic material with double shielding bearing , protection caps and on demand you can get them in Aluminium, in Zinc-Coated Steel or Stainless Steel , various sizes and type of rim.
  3. 3
    Chain slider
    Price:
    from $10.14
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  4. 4
    Chain slider
    Price:
    from $5.46
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  5. 5
    Chain slider
    Price:
    from $12.61
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  6. 6
    Chain slider
    Price:
    from $6.37
    The chain tensioning head are made of anti wear plastic material with low friction coefficient ( Polyethylene 1000 Kinetic friction coefficient 0,06 dry steel). They resist to a temperature up to 65°C.
  7. 7
    Sidler procket kit
    Price:
    from $10.79
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  8. 8
    Stainless steel idler sprockets
    Price:
    from $34.71
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  9. 9
    Rubber for rh tensioners
    Price:
    from $3.12
    RUBBER FOR RH TENSIONERS
  10. 10
    Brackets for rh rotary tensioners
    Price:
    from $8.58
    Supporting brackets in galvanized steel for rotating tensioners in rubber model RH.
  11. 11
    Rh rotary tensioner preloading
    Price:
    from $6.24
    Preloads and antirotation safety systems in galvanized steel for rotating tensioners in rubber model RH. To be used when installing the tensioners on imperfect or irregular surfaces.
  12. 12
    Idler sprocket
    Price:
    from $5.59
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9
  13. 13
    Hardened teeth idler sprockets
    Price:
    from $7.67
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  14. 14
    Kit for idler sprocket
    Price:
    from $3.64
    KIT for sprockets AC-ACTE They include a galvanized steel screw and a machined spacer.
  15. 15
    Idler sprocket
    Price:
    from $8.19
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  16. 16
    Chain slider kit
    Price:
    from $10.14
    PE 1000 UHMW Chain slider, icluded bolt and nut. For chain :3/8"x7/32" 1/2"x5/16" 5/8"x3/8" 3/4"x7/16"
  17. 17
    Chain slider
    Price:
    from $6.24
    PE 1000 UHMW Chain slider. For chain :3/8"x7/32" 1/2"x5/16" 5/8"x3/8" 3/4"x7/16"

Similar

  1. 1
    Directable rotary tensioner
    Price:
    from $18.20
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers . ORIENT with boring or threading ( boring or threading on demand).
  2. 2
    Tensioner device
    Price:
    from $14.04
    Type RH have light alloy body and lever/arm Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever/arm with bore or thread.
  3. 3
    Tensioner device
    Price:
    from $17.81
    Type RH have light alloy body and lever/arm Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever/arm with bore or thread.
  4. 4
    Tensioner device
    Price:
    from $35.49
    Type RH have light alloy body and lever/arm Inside the bases there are 4 rubber elastomers with high elastic memory. In addition there is a lever/arm with bore or thread.
  5. 5
    Arm tensioner
    Price:
    from $16.51
    They have the body and the lever made of a special anti-seize plastic material POM. Useful tensioning angle 75° in both sense of rotation. Lack of synthetic materials so they can work with temperatures up to 60°C.
  6. 6
    Arm tensioner
    Price:
    from $21.32
    They have the body and the lever made of a special anti-seize light alloy perfect for this use. Useful tensioning angle 60° in both sense of rotation. Lack of synthetic materials so they can work with temperatures up to 130°C.
  7. 7
    Arm tensioner
    Price:
    from $33.54
    They have the body and the lever made of a special anti-seize light alloy perfect for this use. Useful tensioning angle 45° in both sense of rotation. Lack of synthetic materials so they can work with temperatures up to 130°C.
  8. 8
    Rotary arm tensioner
    Price:
    from $20.02
    The type TR1 and TR2 have a light alloy body and galvanized steel lever/arm.TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.
  9. 9
    Rotary arm tensioner
    Price:
    from $28.08
    The type TR1 and TR2 have a light alloy body and galvanized steel lever/arm.TR versatility is due to the possibility to change the levers so to get various heights without losing rigidity.
  10. 10
    Inox arm tensioner
    Price:
    from $50.96
    TENSIONER TC08 INOX ALIMENTARY - Stainless steel AISI 302 springs - Stainless steel AISI 316 locking parts - Plastic material 100% alimentary - 100% food colour

Datasheet

AUTOMATIC ROTATING AND ROTARY TENSIONERS ELEMENTS WITH RUBBER

RH type automatic tensioners are automatic devices that serve to maintain the correct tension of the transmission chain or belt, thereby increasing their durability.

They automatically recover any slack in the chain or belt that may develop with use, preventing the appearance of vibrations, noise and breakage due to slack.

These automatic tensioners do not require any kind of upkeep and make it possible to save time on maintenance and management of the machinery on which they are installed.

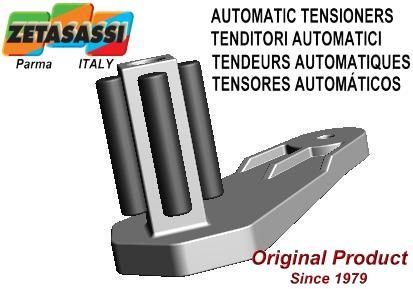

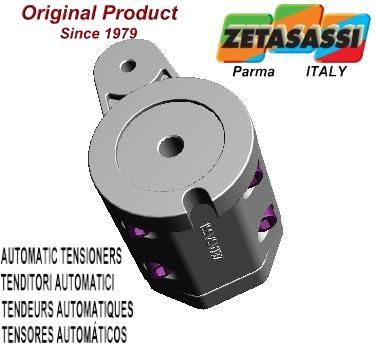

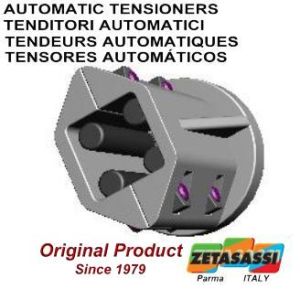

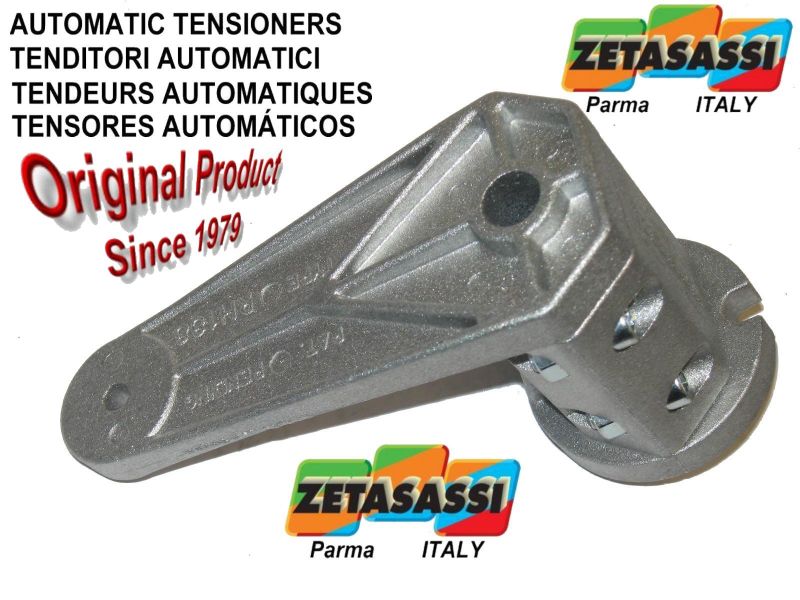

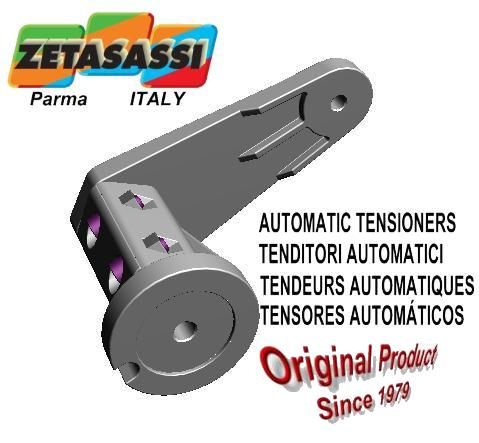

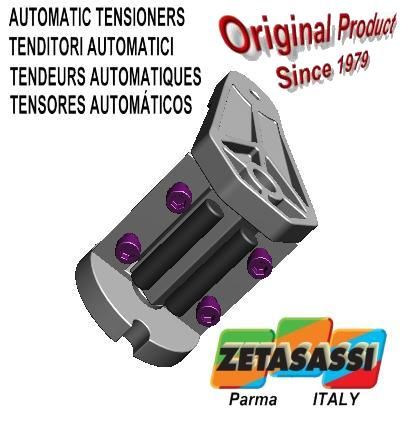

The RH models consist of a base, lever and cap in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa.Four elastomers are positioned inside the base, the square of the lever is positioned on them and they are fastened together by the cap.

The feature that makes our RH tensioners unique is that they can be dismantled for maintenance and/or to replace the elastomers.In fact, unlike the steel springs, which last practically forever, the elastomers may, though only after a very long time, lose their initial characteristic. Moreover, in case of overloads where, for reasons not depending on the tensioner (such as improper installation or overload of the transmission) this may cause the lever to separate from the base.With our RH tensions you can simply unscrew the cap and reposition the lever, or replace the elastomers, screw the cap back on and the product will reacquire its initial characteristics.

These tensioners are characterized in particular by certain main features:

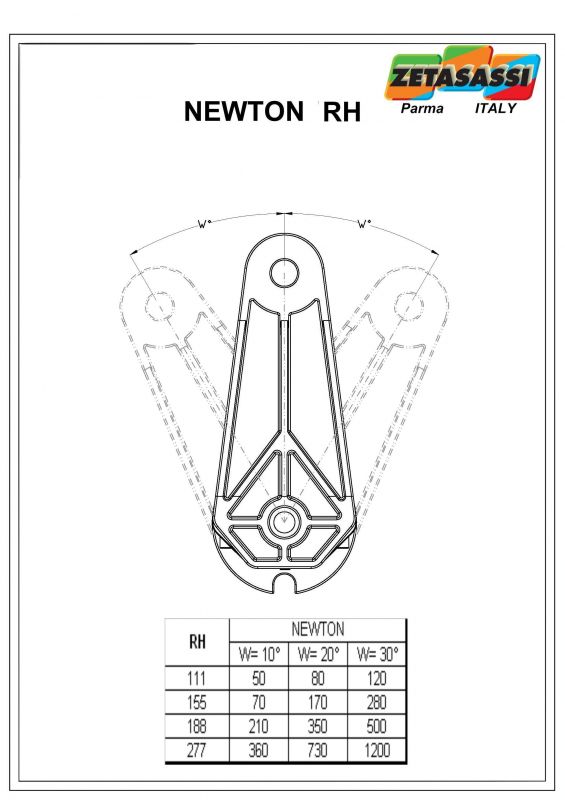

-Tensioning angle 30° in both directions of rotation.

-Elastomers with a very high yield point and initial preload to ensure a stroke at the most constant pressure possible.

-Ease of assembly, as they can be fastened to the machine with screws either from the inside or from the outside.

-They are equipped with stop slots to block rotation in case of installation on imperfect or irregular surfaces

-The quality of the materials, care in construction, simplicity of operation and economical price make them an economical, practical, safe product.

The tensioners can be supplied with chain tensioning shoes in polyethylene 1,000,000 UHMW with dynamic dry steel friction coefficient 0.06 or chain tensioning pinions, belt tensioning rollers and idle pulleys.
