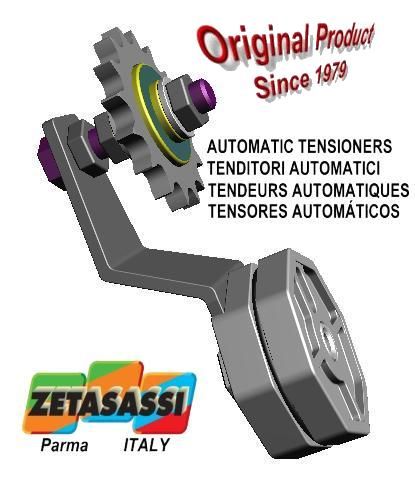

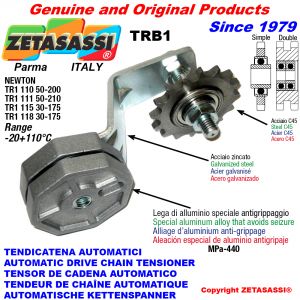

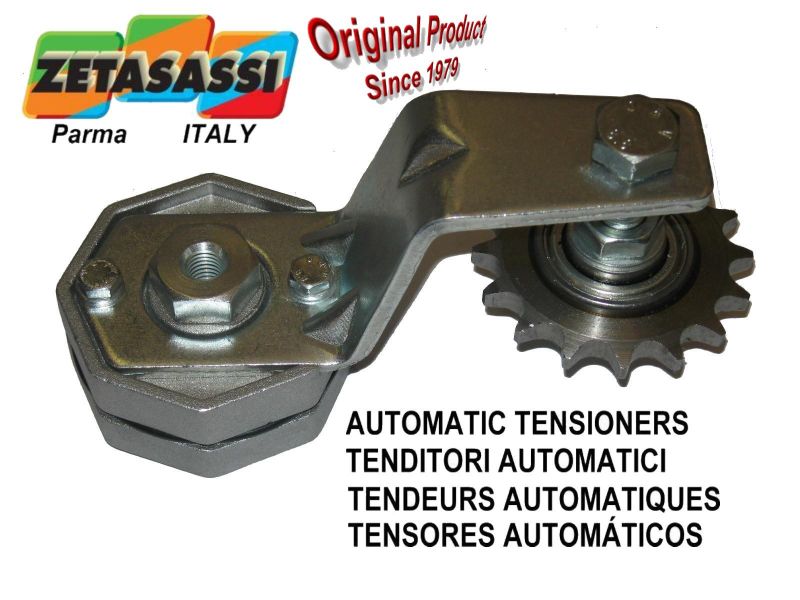

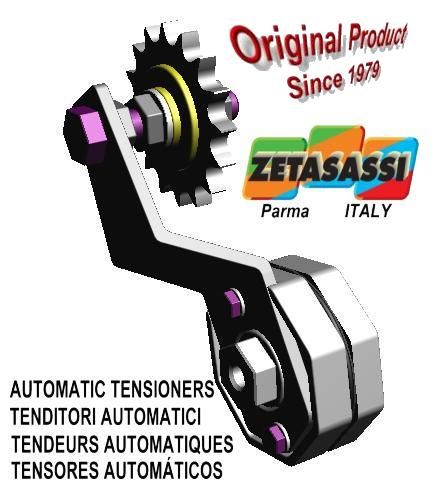

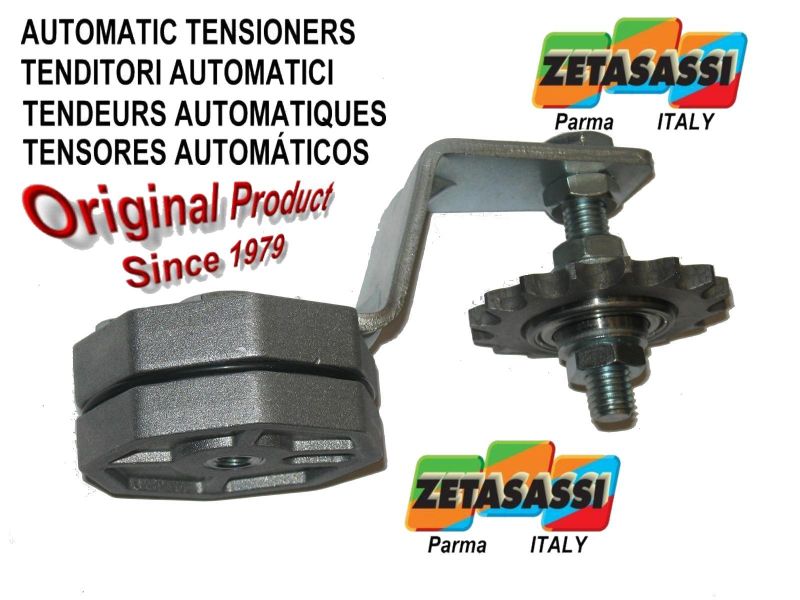

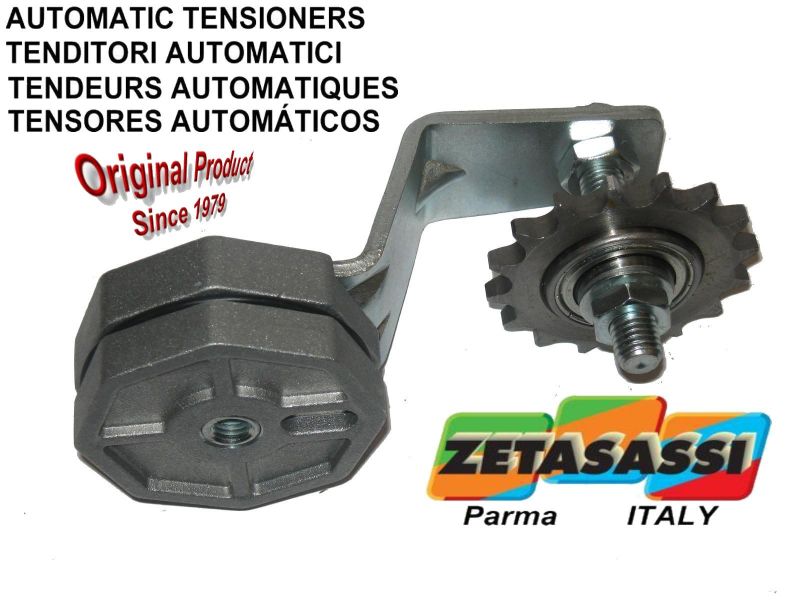

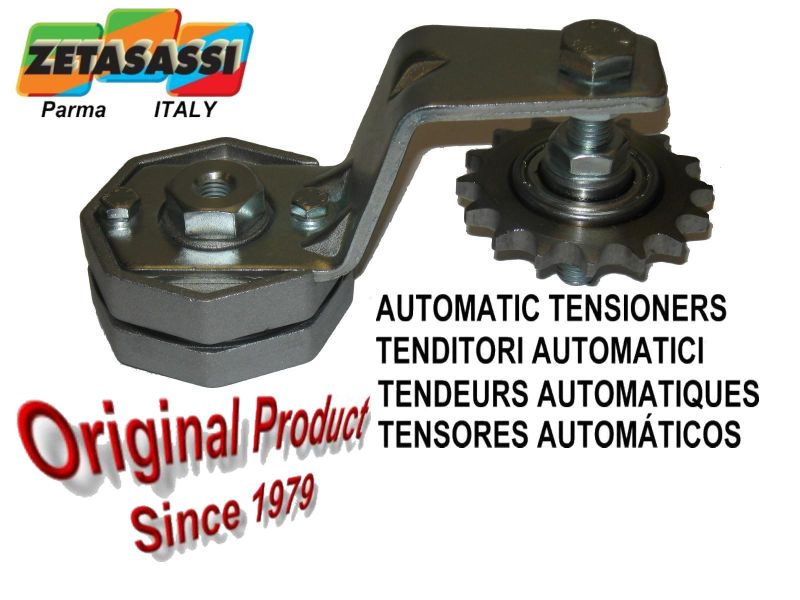

Rotary arm chain tensioner

The type TRB1 and TRB2 have a light alloy body and galvanized steel lever and a sprocket. They have two “ special anti – seize” light alloy bases perfect for this usage.
Price:
from $43.29


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Rotary arm chain tensioner | TRB1
Code
LEVER
SPROCKET
Price

Stock

Delivery

Quantity
Download-cad

TRB1115AC38S

115 (Newton 30:175)
3\8"x7\32"(06B1) Z21 SIMPLE
$43.29

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1115AC38D

115 (Newton 30:175)
3\8"x7\32"(06B2) Z21 DOUBLE
$51.74

967

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1115AC12S

115 (Newton 30:175)
1\2"x5\16"(08B1) Z16 SIMPLE
$43.55

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1115AC12D

115 (Newton 30:175)
1\2"x5\16"(08B2) Z16 DOUBLE
$53.82

609

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1115AC58S

115 (Newton 30:175)
5\8"x3\8"(10B1) Z17 SIMPLE
$45.37

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1115AC58D

115 (Newton 30:175)
5\8"x3\8"(10B2) Z17 DOUBLE
$58.37

174

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1118AC38S

118 (Newton 30:175)
3\8"x7\32"(06B1) Z21 SIMPLE
$43.81

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1118AC38D

118 (Newton 30:175)
3\8"x7\32"(06B2) Z21 DOUBLE
$52.39

474

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1118AC12S

118 (Newton 30:175)
1\2"x5\16"(08B1) Z16 SIMPLE
$44.07

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1118AC12D

118 (Newton 30:175)
1\2"x5\16"(08B2) Z16 DOUBLE
$54.60

474

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1118AC58S

118 (Newton 30:175)
5\8"x3\8"(10B1) Z17 SIMPLE
$45.89

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TRB1118AC58D

118 (Newton 30:175)
5\8"x3\8"(10B2) Z17 DOUBLE
$59.02

98

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

TRB1 with idler sprocket AC, automatic device rotating spring-action chain arm tensioners consisting of two base elements in special, very sturdy, antiseize aluminium alloy with tensile strength of 440MPa, equipped with interchangeable lever in galvanized steel.The internal and external gaskets prevent any infiltrations.  Tensioning angle 60° in both directions of rotation.Equipped with idle chain tensioner pinion and double shielded bearings.

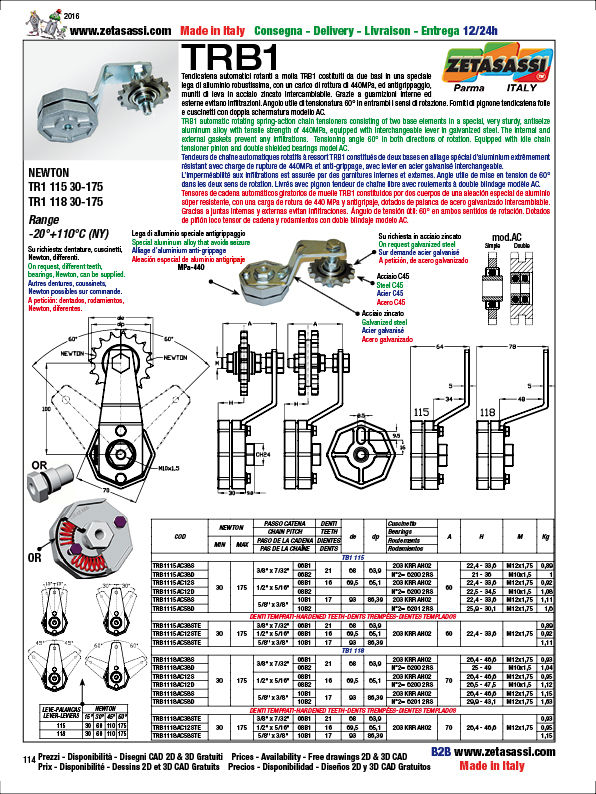

CATALOGUE PAGE
