Adjustable chain tensioner

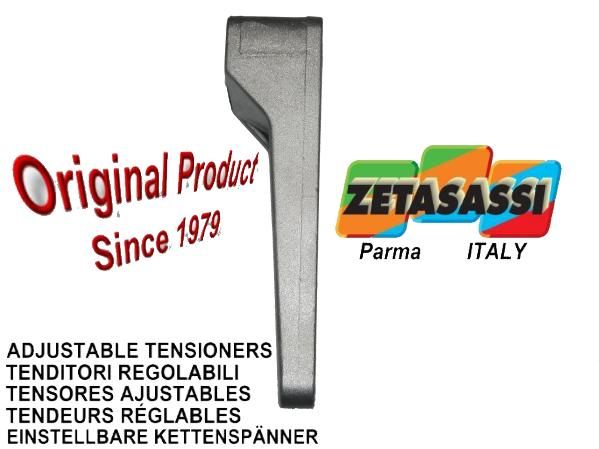

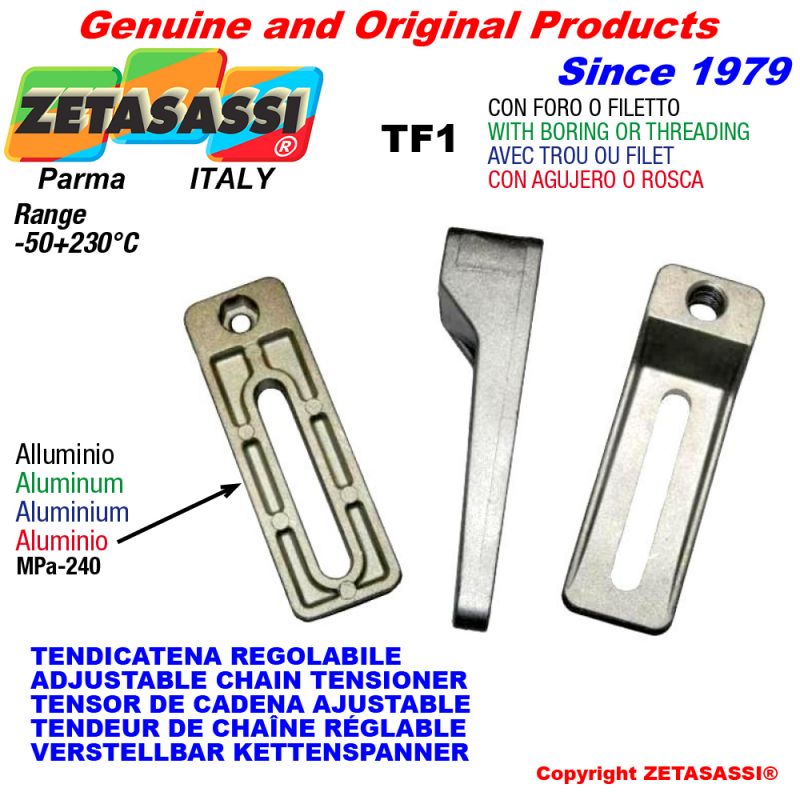

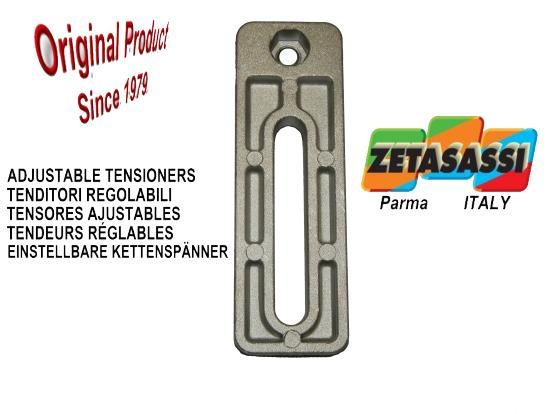

TF1 linear tensioners consisting of a lever in aluminium compound, equipped with hole or thread for assembly of any accessory.
Price:
from $11.83


In stock
New product

Brand - ZETASASSI®

ZETASASSI®
Listing:
You Save:
(%)
Quantity You Save
1 - 9
10 - 29 -5%
30 - 59 -10%
60 -15%
Request information by mail to ZETASASSI®
Adjustable chain tensioner | TF1
Code
HOLE
Price

Stock

Delivery

Quantity
Download-cad

TF1105

Ø 10,5 m\m
$14.56

1,872

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TF185

Ø 10,5 m\m
$11.83

1,872

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TF1125

Ø 12,5 m\m
$14.56

1,872

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TF1M10

M10 X 1,5 m\m
$16.38

1,912

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TF1M12

M12 X 1,75 m\m
$16.38

2,171

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TF1M14

M14 X 2 m\m
$21.84

1,880

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf

TF1M16

M16 X 2 m\m
$21.84

1,872

30 March

pdf-- step-- sat-- x_t-- dwg-- dxf
-

Description

TF1 adjustable linear tensioners consisting of a lever in aluminium compound, equipped with hole or thread for assembly of any accessory.

CATALOGUE PAGE

Accessories

  1. 1
    Idler rollers steel-aluminium-nylon
    Price:
    from $11.44
    Our IDLER ROLLERS PU can be made of Aluminium, Zinc Coated Steel and plastic material type PA6. Ø30 L 35 - Ø40 L45 – Ø40 L 50 – Ø50 L 50 - Ø50 L65 – Ø60 L60 – Ø60 L90 – Ø80 L80- Ø80 L90.
  2. 2
    Rim pulley with bearings
    Price:
    from $17.68
    type PUG rim pulley ( A) made of PA6 plastic material with double shielding bearing , protection caps and on demand you can get them in Aluminium, in Zinc-Coated Steel or Stainless Steel , various sizes and type of rim.
  3. 3
    Sidler procket kit
    Price:
    from $10.79
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  4. 4
    Stainless steel idler sprockets
    Price:
    from $34.71
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  5. 5
    Idler sprocket
    Price:
    from $5.59
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 1/2"x5/16"(08B1) z14 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 3/4"x7/16"(12B1) z13 1"x17 m\m (16B1) z12 1"1/4x3/4"(20B1) z9 1"1/2x1"(24B1) z9 1"3/4x1"1/4(28B1) z9
  6. 6
    Hardened teeth idler sprockets
    Price:
    from $7.67
    3/8"x7/32"(06B1) z21 1/2"x5/16"(08B1) z16 5/8"x3/8"(10B1) z17 3/4"x7/16"(12B1) z15 1"x17 m\m (16B1) z12
  7. 7
    Kit for idler sprocket
    Price:
    from $3.64
    KIT for sprockets AC-ACTE They include a galvanized steel screw and a machined spacer.
  8. 8
    Idler sprocket
    Price:
    from $8.19
    There is the plate wheel and the double shielding bearing set up in the centre. Ready for the set up in particular tensioning points or return.For chain 3\8 06B z15- 1\2" 08B z15- 5\8" 10B z15- 3\4" 12B z15- 1" 16B z13, simple, double, triple.
  9. 9
    Chain slider kit
    Price:
    from $10.14
    PE 1000 UHMW Chain slider, icluded bolt and nut. For chain :3/8"x7/32" 1/2"x5/16" 5/8"x3/8" 3/4"x7/16"
  10. 10
    Chain slider
    Price:
    from $6.24
    PE 1000 UHMW Chain slider. For chain :3/8"x7/32" 1/2"x5/16" 5/8"x3/8" 3/4"x7/16"

Similar

  1. 1
    Belt tensioner roller bracket
    Price:
    from $44.07
    These brackets are made to support our belt tensioner rollers type PU. They are available with the double shielding bearing pulley. They are set up one by one to check the proper sliding of the bearing.
  2. 2
    Idler sprocket bracket
    Price:
    from $28.34
    They support simple and double chain sprockets and are available with the sprocket set up. They are economic, strong and easy to be set up so you can avoid other solutions
  3. 3
    Bracket hr with hardened idler sprocket
    Price:
    from $30.42
    They support simple and double chain sprockets and are available with the sprocket set up. They are economic, strong and easy to be set up so you can avoid other solutions .
  4. 4
    Directable rotary tensioner
    Price:
    from $18.20
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers . ORIENT with boring or threading ( boring or threading on demand).
  5. 5
    Directable rotary drive chain tensioner
    Price:
    from $27.30
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
  6. 6
    Directable rotary drive chain tensioner
    Price:
    from $28.21
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-P with a polyethylene 1'000'000 UHMW head and with a dynamic friction factor that is 0,06 dry steel.
  7. 7
    Directable rotary drive belt tensioner
    Price:
    from $33.28
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PU with idler roller ( on our catalogue you can find pulleys made of different materials and in different measures).
  8. 8
    Directable rotary drive belt tensioner
    Price:
    from $39.52
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-PUG with a rim pulley and protections.
  9. 9
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  10. 10
    Directable rotary drive chain tensioner
    Price:
    from $31.98
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  11. 11
    Directable rotary drive chain tensioner
    Price:
    from $30.03
    The rotary tensioner type Orient works as a fixed device and inside there are neither halical springs nor elastomers .ORIENT-R with idler sprocket .
  12. 12
    Adjustable belt tensioner
    Price:
    from $25.09
    The tensioner type TF1PU works as a fixed device and inside there are neither halical springs nor elastomers .TF1PU with idler roller ( on our catalogue you can find pulleys made of different materials and in different measures).
  13. 13
    Adjustable chain tensioner
    Price:
    from $27.43
    The tensioner type TFR1 AC works as a fixed device and inside there are neither halical springs nor elastomers .TFR1 AC with idler sprocket .
  14. 14
    Adjustable chain tensioner
    Price:
    from $29.51
    The tensioner type TFR1 AC works as a fixed device and inside there are neither halical springs nor elastomers .TFR1 AC with idler sprocket .
  15. 15
    Adjustable chain tensioner
    Price:
    from $26.39
    The tensioner type TFR1 RS RD RT works as a fixed device and inside there are neither halical springs nor elastomers .TFR1 RS RD RT with idler sprocket .
  16. 16
    Adjustable chain tensioner
    Price:
    $16.38
    Light alloy body and tensioning head made of PE1000 UHMW. For chain 3/8 06B1 - 1/2 08B1 - 5/8 10B1 - 3/4 12B1 Simple
  17. 17
    Adjustable chain tensioner
    Price:
    from $18.07
    Light alloy body and tensioning head made of PE1000 UHMW. For chain 3/8 06B - 1/2 08B, Simple, double.
  18. 18
    Adjustable chain tensioner
    Price:
    from $18.98
    Light alloy body and tensioning head made of PE1000 UHMW. For chain 3/8 06B - 1/2 08B, Simple, double,triple.
  19. 19
    Adjustable chain tensioner
    Price:
    from $21.97
    Light alloy body and tensioning head made of PE1000 UHMW. For chain 5/8 10B - 3/4 12B, Simple, double.
  20. 20
    Adjustable chain tensioner
    Price:
    from $23.27
    Light alloy body and tensioning head made of PE1000 UHMW. For chain 5/8 10B - 3/4 12B, Simple, double, triple.
  21. 21
    Adjustable chain tensioner
    Price:
    from $28.73
    Light alloy body and tensioning head made of PE1000 UHMW. For chain 1" 16B1 - 1"1/4 20B1 - 1"1/2 24B1, Simple.
  22. 22
    Adjustable chain tensioner
    Price:
    from $30.55
    Light alloy body and tensioning head made of PE1000 UHMW. For chain 1" 16B - 1"1/4 20B - 1"1/2 24B, Simple, double, triple.

Datasheet

ADJUSTABLE LINEAR TENSIONERS

The adjustable tensioners TF and GA work like a fixed device, so they contain no spiral springs or elastomers. The absence of synthetic materials enables them to function at very high temperatures.

Their peculiarity lies in the fact that they can be adjusted as needed, either before or after installation, when the slack of the belt or chain requires correction of the tensioning.

This is possible thanks to a simple, intuitive system, one or more simple adjustment slots.

Adjustable tensioners TF and GA are made of an aluminium alloy that has a tensile strength of 240Mpa.

The GA model is a small element with a strip of polyethylene 1,000,000 UHMW with dry steel friction coefficient of 0.06 riveted to its end, and cross-section suitable for various chain sizes.It is ideal in cases when the space is limited, as it is very small.

The TF models with shoe consist of a fitted lever with U cross-section where the chain tensioning shoe in polyethylene 1,000,000 UHMW with dry steel friction coefficient of 0.06 is inserted and held fast by steel plugs. It is available for different chain sizes and profiles.

For the TF model size 1 we can have a simple, functional lever with a threaded hole on the end where accessories can be installed, chain tensioning pinions, shoes or idle belt tensioning rollers.

It is an excellent alternative for those who do not need an automatic tensioner but, at the same time, have problems of size and positioning on the machine.
